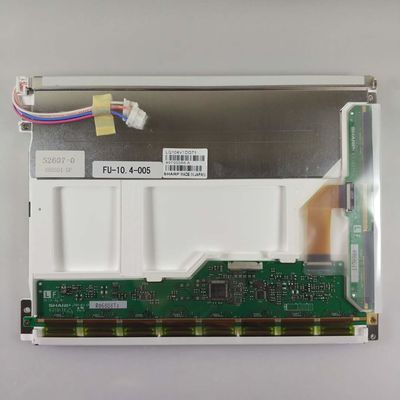

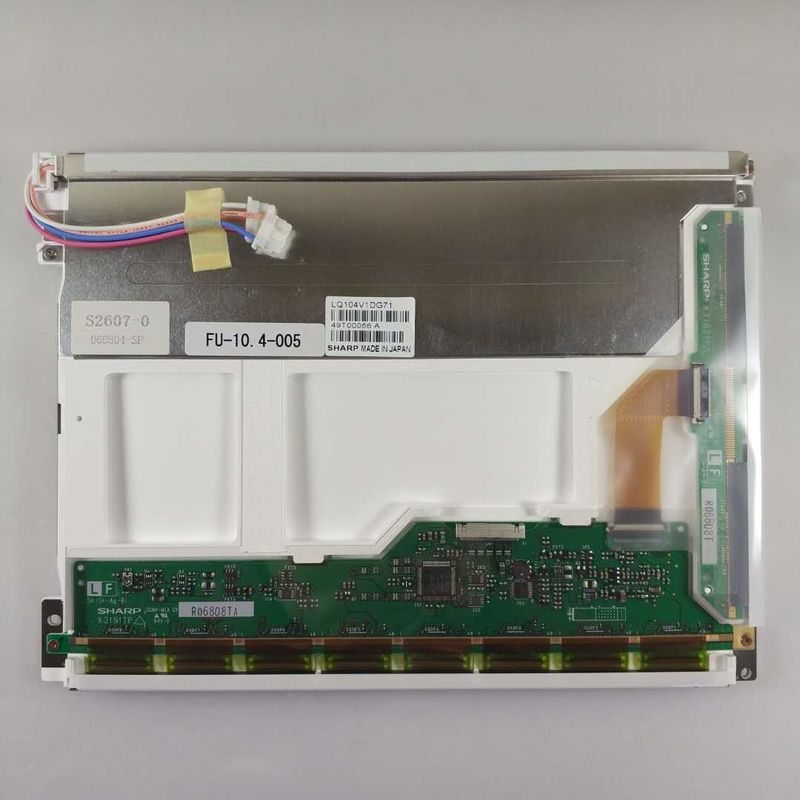

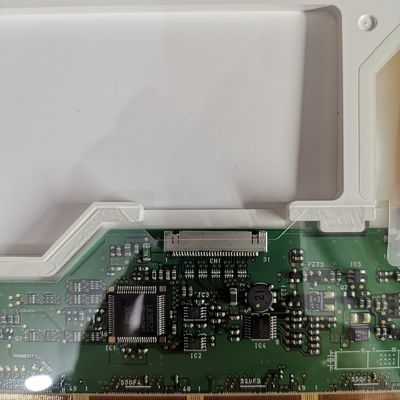

Product Details:
|
| Model Name: | LQ104V1DG71 | Manufacturer: | Sharp |
|---|---|---|---|
| Backlight: | 2 Pcs CCFL , No Driver | Signal Type: | Parallel RGB (1 Ch, 6-bit) , Connector 31 Pins |
| Screen Size: | 10.4 Inch | Pixel Number: | 640(RGB)×480 (VGA) 76PPI |
| Active Area(mm): | 211.2 × 158.4 (H×V) | Screen Type: | LCM, A-Si TFT-LCD |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||

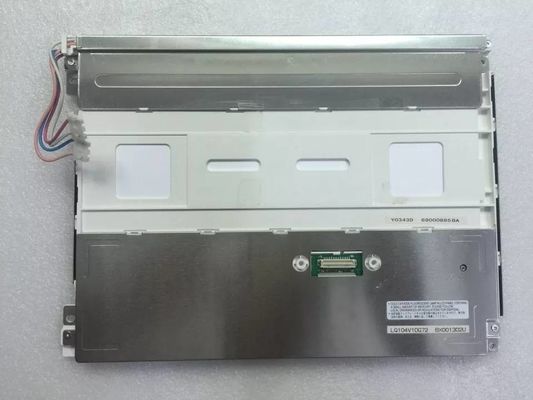

LQ104 Series LQ104V1DG74 LQ104V1DG72 LQ104V1DG71 LQ104V1DG62
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | - | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | - | - | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) | - |
| Interface Features : | Position | Type | Interface | |||
|---|---|---|---|---|---|---|
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 31 pins | |||||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LQ104V1DG71 | a-Si TFT-LCD , LCM | - | ||
| Designed For : | ||||
| Frame Rate : | 60Hz |
|---|
| Interface Features : | Position | Type | Interface | |||
|---|---|---|---|---|---|---|
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 31 pins | |||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 2 pcs | - | - | |
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 8.0 mm | 2 pins | ||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm. As a TN, Normally White, Transmissive LCM product, LQ104V1DG71 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side), external backlight driver is additionally needed. LQ104V1DG71 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LQ104V1DG71 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with Sharp.
