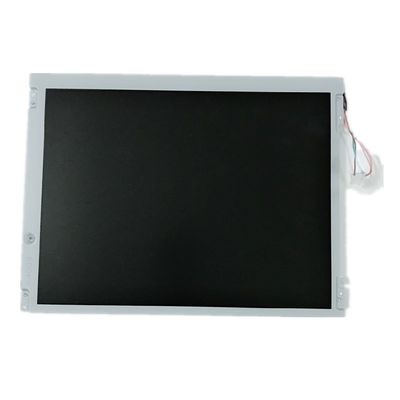

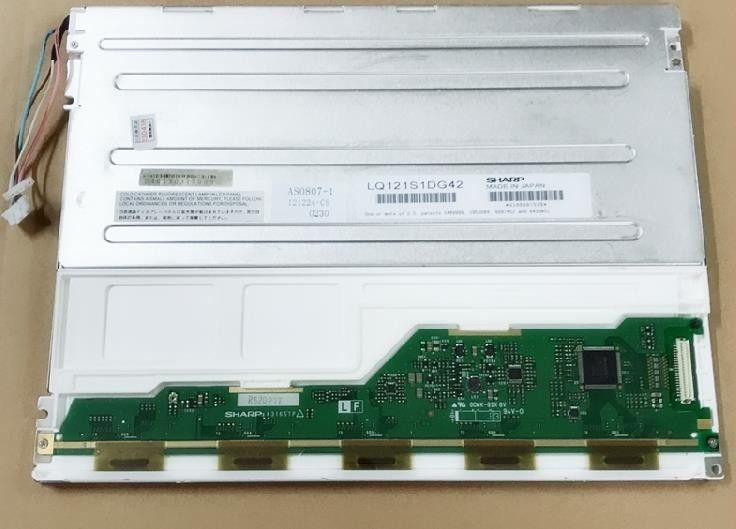

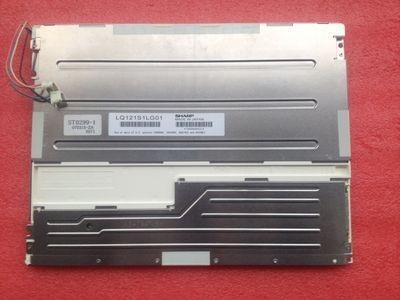

Product Details:
|
| Panel Size: | 12.1" | Panel Model: | LQ121S1DG42 |
|---|---|---|---|
| Brightness: | 370 Cd/m² (Typ.) | Resolution: | 800(RGB)×600, SVGA, 82PPI |
| Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 41 Pins Connector |
| Viewing Angle: | 70/70/50/60 | Environment: | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ121 SeriesLQ121S1DG81 LQ121S1DG61 LQ121S1DG49 LQ121S1DG43 LQ121S1DG42
| Panel Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.3075×0.3075 [82PPI] | 0.1025×0.3075 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 246(H) × 184.5(V) | 249.0(H) × 187.5(V) | 276(H) × 209(V) | 11.0 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 660g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 370 (Typ.) | 70/70/50/60 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 450 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Max.)(5 points) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 2 pcs | Straight | 50K(Min.) | Replaceable | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 583V (Typ.) | 3.0/6.0/6.5mA (Min./Typ./Max.) | 7.0W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 35/60/80KHz (Min./Typ./Max.) | 1200/1500V (Max.)(Ta=+25/-10℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 380/230mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | VIL≤0.8V; 2.1V≤VIH | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 1.0 mm | 41 pins | 1 pcs | DRGB-41P1C6B-010A | |||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
