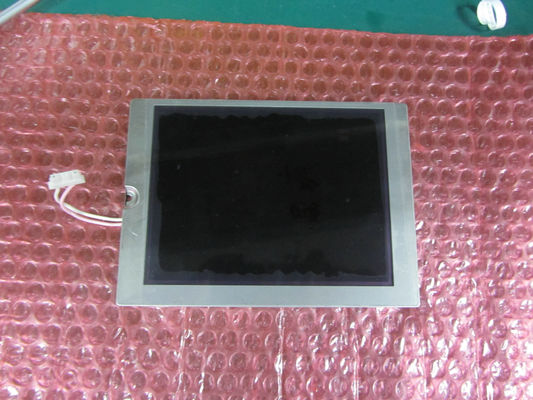

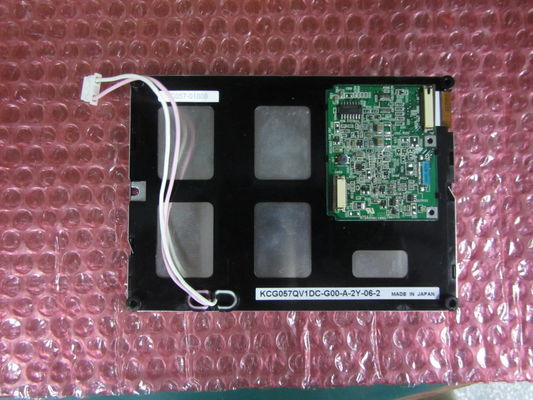

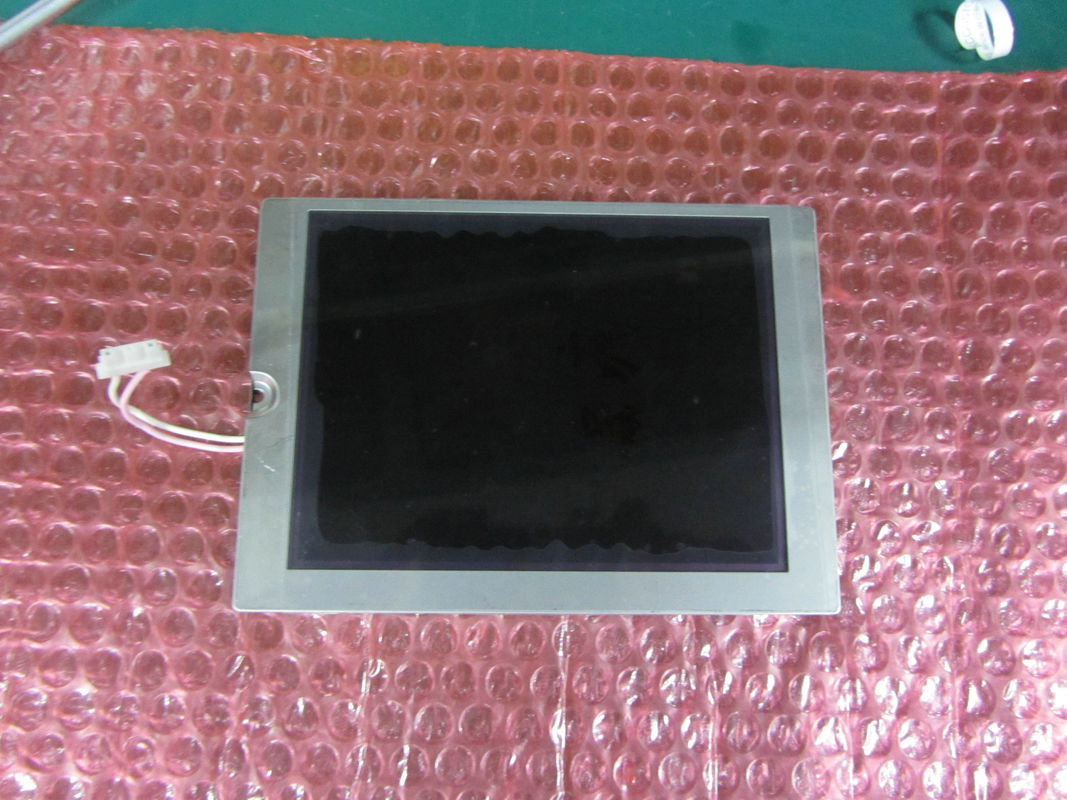

Product Details:
|
| MODEL NUMBER: | KCG057QV1DC-G00 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| Panel Type: | CSTN-LCD , LCM | Display Colors: | Color |
| Lamp Type: | CCFL | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Info； | Panel Brand | Model Name | KCG057QV1DC-G00 | |
|---|---|---|---|---|
| Panel Type | CSTN-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | - | Contrast Ratio | 55 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 180/170 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 50/50/20/35 (Typ.)(CR≥2) | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Color |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | - |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style |
| Reverse Scan : | No |
|---|---|
| Driving Method : | Duty: 1/240 |
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | - | |
| Interface Features : | Position | - | Physical Type | Connector | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
