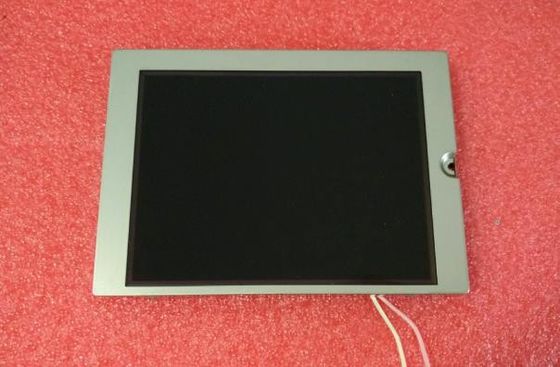

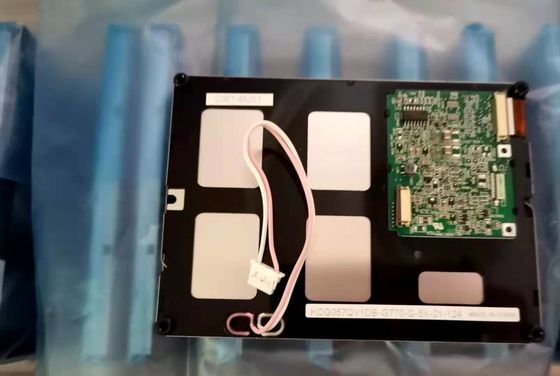

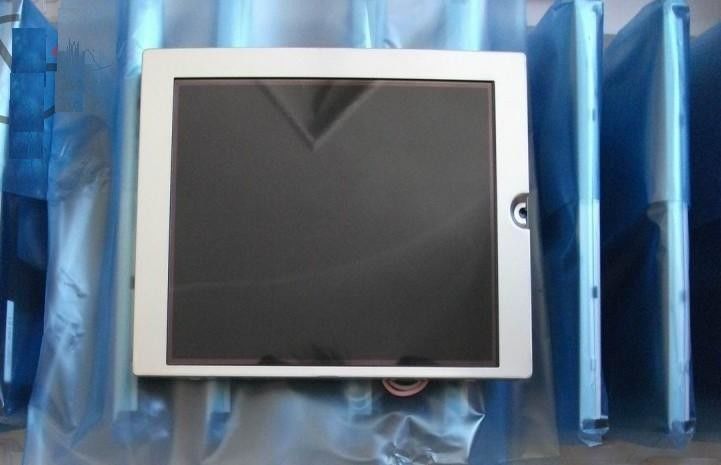

Product Details:
|
| MODEL NUMBER: | KCG057QV1DB-G770 | BRAND: | Kyocera |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 380 Cd/m² (Typ.) | Type: | CSTN-LCD, LCM |
| Light Source: | CCFL [1 Pcs] , 75K Hours , W/O Driver | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C |
| High Light: | CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| KCG057QV1DB-G770 | CSTN-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C | -20 ~ 60 °C |
| Panel Size : | 5.7 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.2×86.4 mm | 117.2×88.4 mm | 144×104.8 mm | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Rear mounting poles (4-Φ2.6) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 175g (Typ.) | |||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 380 cd/m² (Typ.) | STN, Normally Black, Transmissive | 60:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 55/55/60/75 (Typ.)(CR≥2) | - | 450 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7525K | Color | X:0.300; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 58% | 76% | 60% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 59% | 43% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Power Consumption : | 2.83W (Typ.) |
|---|---|
| Frame Rate : | 75Hz |
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 29.0/19.0mA (Typ.)(3.3V/5.0V)(IDD) | 3.3/5.0V (Typ.)(VDD) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel Data (8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Kyocera Elco | 08-6210-020-340-800+ | 1 pcs | 0.5 mm | 20 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | U shape | 1 pcs | 75K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.0/4.0/6.0mA (Min./Typ./Max.) | 685V (Typ.) | 2.74W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1035/1550V (Max.)(Ta=+25/0°) | 30/100KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
