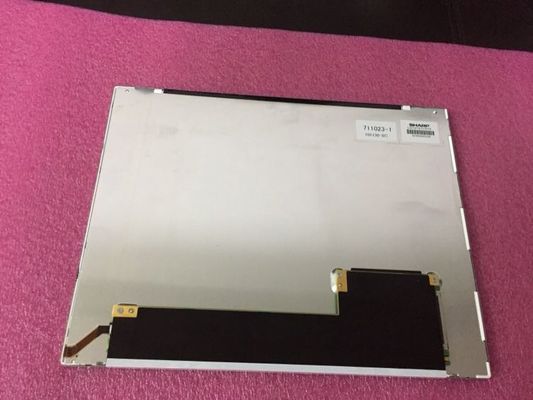

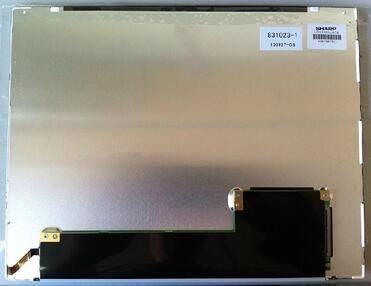

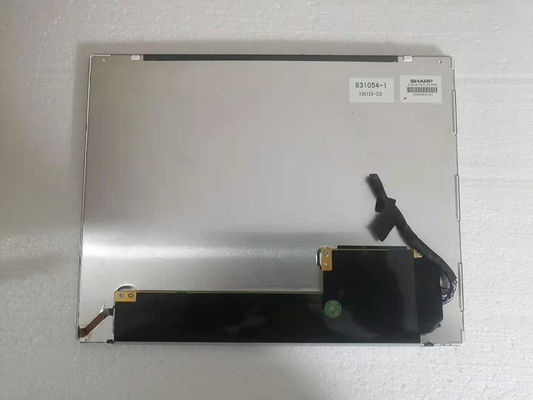

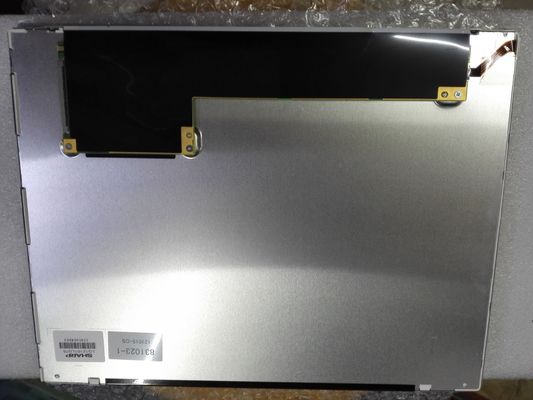

Product Details:
|
| Panel Model: | LQ121S1LG74A | Resolution: | 800(RGB)×600, SVGA, 82PPI |
|---|---|---|---|
| Brightness: | 450 Cd/m² (Typ.) | Panel Size: | 12.1INCH |
| Signal Interface: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Lamp Type: | WLED , 50K Hours , With LED Driver |
| Viewing Angle: | 80/80/60/80 | Environment: | Operating Temp.: -10 ~ 75 °C ; Storage Temp.: -30 ~ 75 °C |
| High Light: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
LQ121 Series LQ121S1LG74A LQ121S1LG74 LQ121S1LG73 LQ121S1LG72 LQ121S1LG71
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 257.3(H) × 188.1(V) |
| Outline Dim.(mm) | 265(H) × 205(V) | Depth(mm) | 9.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on up, down bezel | |||
| Other Spec : | Weight | 550g (Max.) | Treatment | Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.290; Y:0.305 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 8405K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 78% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 81% coverage | |
| Rec.2020 | 58% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 360/430mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XPB30SRL-HF11 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-270A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.8V | Current Supply | 420/570mA (Typ./Max.) | ||
