KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY

KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY
KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY

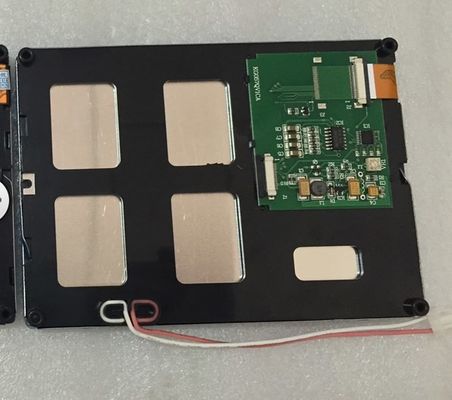

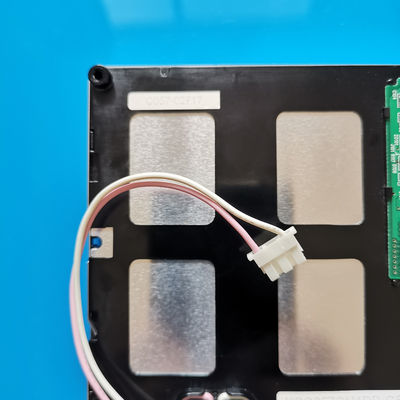

Large Image :  KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KCG057QV1DB-G000
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

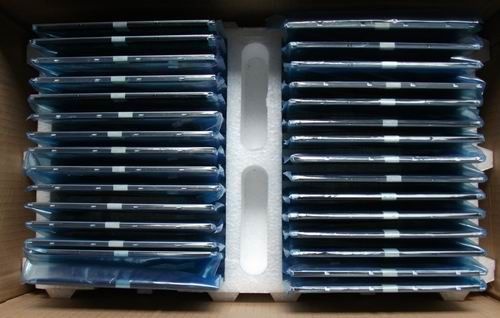

Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 200PCS

KCG057QV1DB-G000 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: KCG057QV1DB-G000 BRAND: Kyocera
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 350 Cd/m² (Typ.) Lamp Type: 1 Pcs CCFL
Panel Type: CSTN-LCD, LCM Display Colors: Color
High Light:

WLED FSTN LCD display

,

WLED Industrial TFT Display

Kyocera KCG057QV1DB-G000 Application Details



Basic Info;
Application

CSTN-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-
Storage Temp.
-
RoHS State
Vibration Ratin

g



Kyocera KCG057QV1DB-G000 Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.120×0.360 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.18×86.38 mm (H×V)
Bezel Area
119.4×90.6 mm (H×V)
Outline Dim.
144×104.8 mm (H×V)
Outline Depth
9.0/13.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting poles (4-Φ2.6)
Other Features :
Weight
175g
Surface



Kyocera KCG057QV1DB-G000 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
55:1 (Typ.) (Transmissive)
Viewing Angle
50/50/20/35 (Typ.)(CR≥2)
Optical Mode
STN, Normally Black, Transmissive
Viewing Direction
-
Response Time
-
Color Performance :
Chromaticity
-
Color Numbers
Color



Kyocera KCG057QV1DB-G000 Electronics Details

Frame Frequency :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



ocera KCG057QV1DB-G000 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
-
Replacement
-
Lamp Shape
Straight
Position
Edge light type



Kyocera KCG057QV1DB-G000 Interface Detail

Signal Electrical :
Voltage Input
3.3/5.0V (Typ.)(VDD)
Current Input
