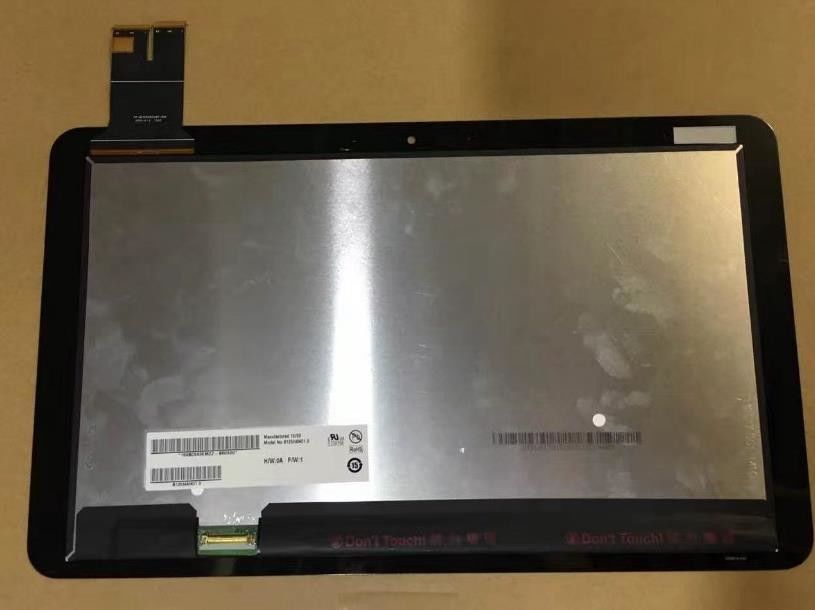

Product Details:
|
| Model: | LQ125T1JX03C | Diagonal Size: | 12.5 Inch |
|---|---|---|---|
| Pixel Format: | 2560(RGB)×1440 [Quad-HD] 235PPI | Luminance: | 400 Cd/m² (Typ.) |
| Interface Type: | EDP (4 Lanes) , 40 Pins Connector | Light Source: | WLED , 15K Hours , With LED Driver |
| Viewing Angle: | 80/80/80/80 | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
LQ125 Series LQ125T1JX03C LQ125T1JX03B
| Pixel Features : | Resolution | 2560(RGB)×1440, Quad-HD | Dot Pitch(mm) | 0.036×0.108 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.108×0.108 (H×V) [235PPI] | |
| Mechanical Size : | Active Area(mm) | 276.48(H) × 155.52(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 282.68(H) × 169.93(V) | Depth(mm) | 2.1/4.9 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 160/170g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.45 (Typ./Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 406/630mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.34/2.08W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-12 | 1 pcs | 40 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 2.8/3.2W (Typ./Max.) | |||||
LQ125T1JX03C supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 276.48(W)×155.52(H) mm, outline size of 282.68(W)×169.93(H)×4.9(D) mm, with surface treament of Glare (Haze 0%), Hard coating, net weight of 160/170g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LQ125T1JX03C can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver.
