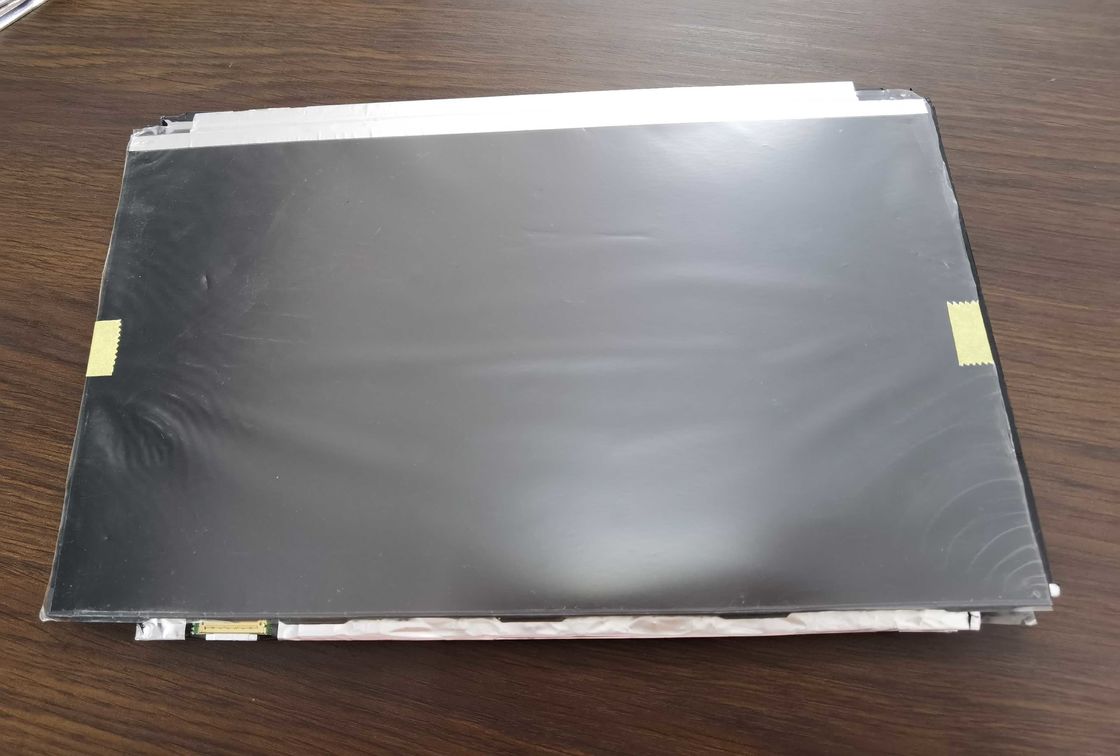

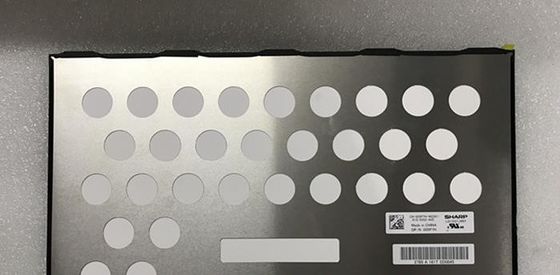

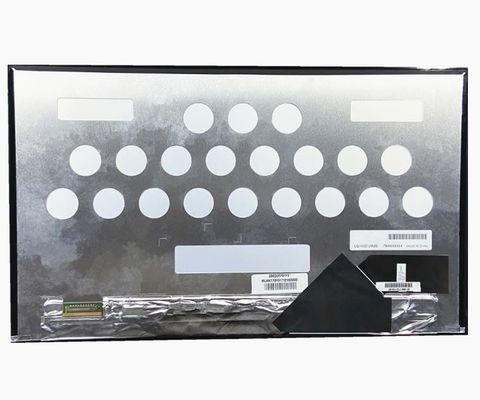

Product Details:
|
| Model Name: | LQ133Z1JW23 | Luminance: | 400cd/m² |
|---|---|---|---|
| Screen Size: | 13.3INCH | Pixel Number: | 3200(RGB)×1800 276PPI |
| Viewing Angle: | 89/89/89/89 | Backlight: | 7S8P WLED , 15K Hours , With LED Driver |
| Signal Type: | EDP (4 Lanes) , Connector 40 Pins | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
LQ133 Series LQ133Z1JW26 LQ133Z1JW25 LQ133Z1JW23 LQ133Z1JW21 LQ133Z1JW01
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | VA, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.53 (Max.)(5/13 points) | ||
| Panel Size : | 13.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3200(RGB)×1800 | RGB Vertical Stripe | 0.0918×0.0918 [276PPI] | 0.0306×0.0918 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 293.76(H) × 165.24(V) | - | 299.46(H) × 185.4(V) | 2.15/4.7 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Flat, T≤3.2mm) | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 190/210g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7S8P | 8 strings | 15K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/15.0V (Min./Typ./Max.) | 267.5/295mA (Typ./Max.) | 3.21/3.54W (Typ./Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 455/545mA (Typ./Max.) | 1.5/1.8W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20525-040E-02 | 0.4 mm | 40 pins | 1 pcs | ||
LQ133Z1JW23 supports display 3200(RGB)×1800 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 276 PPI. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 299.46(W)×185.4(H)×4.7(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 190/210g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a VA, Normally Black, Transmissive LCM product, LQ133Z1JW23 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 7S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver.
