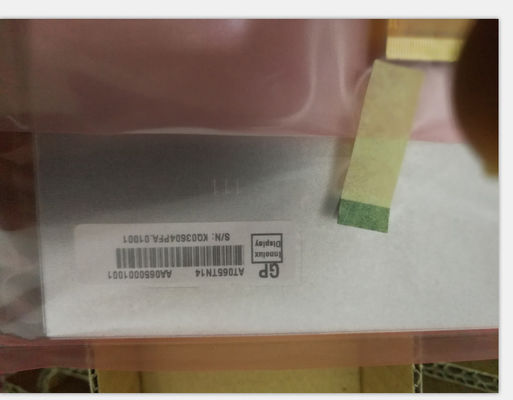

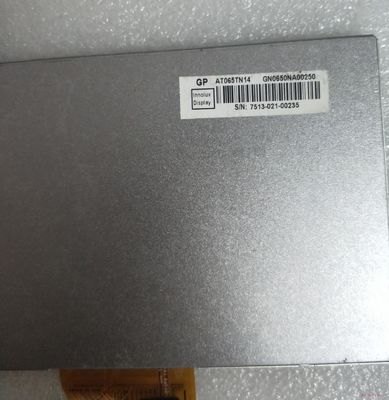

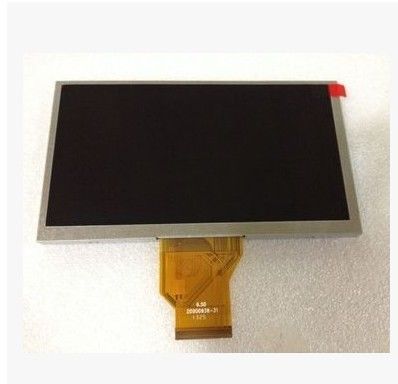

Product Details:
|
| MODEL NUMBER: | AT065TN14 | BRAND: | CHIMEI Innolux |
|---|---|---|---|
| SIZE: | 6.5 Inch | RESOLUTION: | 800(RGB)×480 [WVGA] 145PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | VIEWING ANGLEG: | 70/70/50/70 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C | ||
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
| Screen Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.05975×0.1598 mm | 0.17925×0.1598 mm [145PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 143.4×76.704 mm | 146.2×78.7 mm | 155.2×89.4 mm | 5.5±0.2 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 17:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 127g (Typ.) | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K/16.7M (6-bit / 6-bit + Dithering) | X:0.310; Y:0.330 | |
| White Uniformity : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Driver IC List: | COG Built-in NT39419, NT52001 |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 3S8P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.3V (Typ.) | 160mA (Typ.) | 1.45W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | 4.0/20.0/0.6/0.6mA (Typ.)(DIDD/AIDD/IGH/IGL) | 0.24W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6/8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | DRGB-50P1C8B-115A | |||

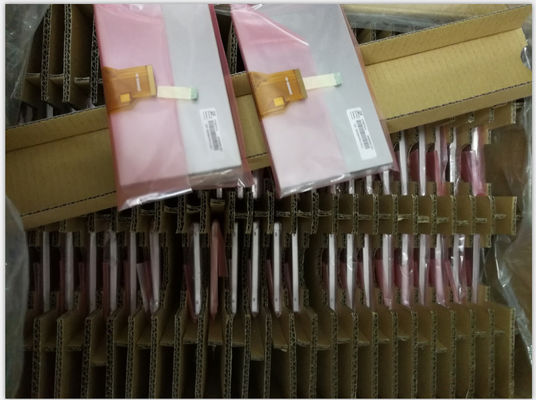

| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 50 pcs / box | 9.65±0.48 Kgs | 530×350×255 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
