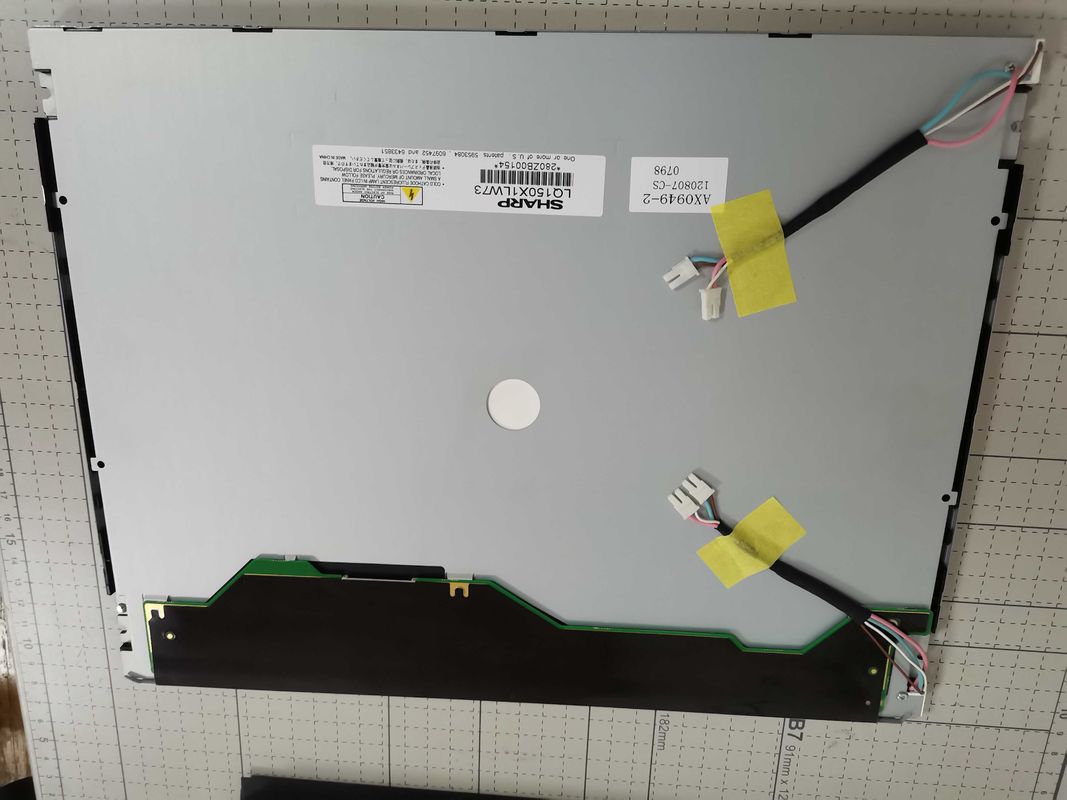

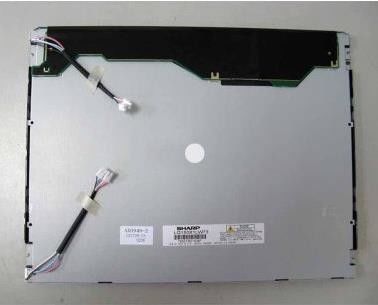

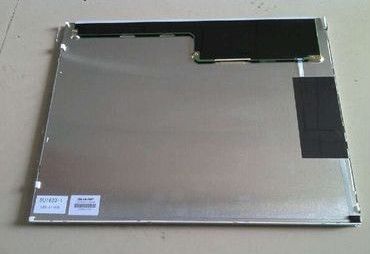

Product Details:
|
| Model: | LQ150X1LG81 | Luminance: | 350 Cd/m² (Typ.) |
|---|---|---|---|
| Viewing Angle: | 60/60/45/55 | Pixel Format: | 1024(RGB)×768 [XGA] 85PPI |
| Interface Type: | LVDS (1 Ch, 8-bit) , 20 Pins Connector | Light Source: | CCFL [2 Pcs] , 50K Hours , W/O Driver |
| Diagonal Size: | 15" | Environment: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 60 °C |
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
LQ150 Series LQ150X1LG81 LQ150X1LG71 LQ150X1LG55 LQ150X1LG11
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] | |
| Mechanical Size : | Display Area | 304.128×228.096 mm (H×V) | Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dim. | 326×252 mm (H×V) | Outline Depth | 11.2±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.00Kgs (Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 550:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 2/6 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 660V (Typ.) | Current Input | 3.5/6.5/7.5mA (Min./Typ./Max.) | ||
| Frequency | 40/55/70KHz (Min./Typ./Max.) | Kick-off Voltage | 1400V (Max.)(Ta=0℃) | |||
| Consumption | 8.6W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 350mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF14H-20P-1.25H | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010G | |
LQ150X1LG81 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326(W)×252(H)×11.7(D) mm, viewing area size of 308.1(W)×232.1(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.00Kgs (Max.). As a TN, Normally White, Transmissive LCM product, LQ150X1LG81 can provides 350 cd/m² display brightness 550:1 transimissive contrast ratio, 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 52% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed.
