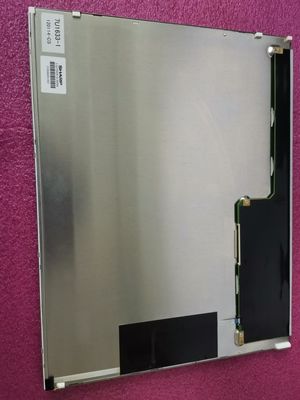

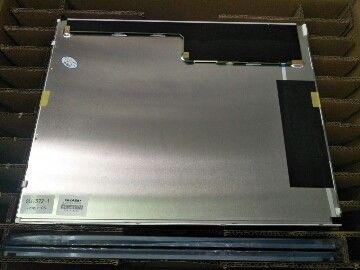

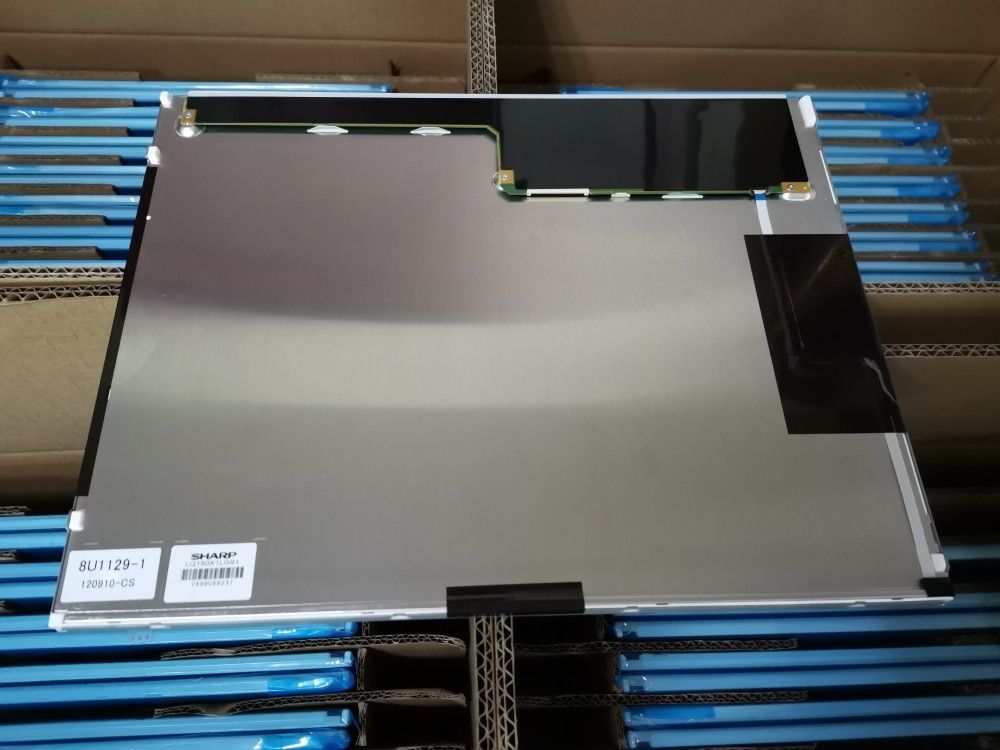

15" LCM 1024×768RGB  400cd/m² LQ150X1LW95 Sharp TFT LCD Display

15" LCM 1024×768RGB  400cd/m² LQ150X1LW95 Sharp TFT LCD Display
15" LCM 1024×768RGB  400cd/m² LQ150X1LW95 Sharp TFT LCD Display 15" LCM 1024×768RGB  400cd/m² LQ150X1LW95 Sharp TFT LCD Display 15" LCM 1024×768RGB  400cd/m² LQ150X1LW95 Sharp TFT LCD Display

Large Image :  15" LCM 1024×768RGB  400cd/m² LQ150X1LW95 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: Sharp
Certification: ISO9001
Model Number: LQ150X1LW95
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 pcs / box 10.5 Kgs 435×343×341 mm
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

15" LCM 1024×768RGB  400cd/m² LQ150X1LW95 Sharp TFT LCD Display

Description
Panel Model: LQ150X1LW95 Panel Brand: Sharp
Panel Size: 15" Lamp Type: WLED , 70K Hours , With LED Driver
Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Resolution: 1024(RGB)×768, XGA, 85PPI Brightness: 400 Cd/m² (Typ.)
Environment: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -25 ~ 70 °C
High Light:

XGA Industrial LCD Panel

,

SVGA Sharp TFT LCD Screen

LQ150 Series LQ150X1LW96 LQ150X1LW95 LQ150X1LW94 LQ150X1LW93 LQ150X1LW92



Sharp LQ150X1LW95 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
35 (Typ.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
ASV, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.305; Wy:0.320
Support Color
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
7037K
White Variation
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
70%
sRGB
91% coverage
Adobe RGB
73% coverage
DCI-P3
73% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ150X1LW95 Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.099×0.297 mm
Pixel Pitch(W×H)
0.297×0.297 mm [85PPI]
Physical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
326.5(W)×253.5(H) mm
Bezel Opening
307.4(W)×231.3(H) mm
Overall Depth
9.6±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
950g (Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



Sharp LQ150X1LW95 Interface Detail

Signal Electrical :
Input Current
380/500mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
DF14-20P-1.25H(56)
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010G





Sharp LQ150X1LW95 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
70K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SM06B-SHLS-TF
1.0 mm
6 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0±1.8V
Input Current
0.73/1.1A (Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
