LQ150X1LW96 Sharp 15" LCM 1024×768RGB 500cd/m² INDUSTRIAL LCD DISPLAY

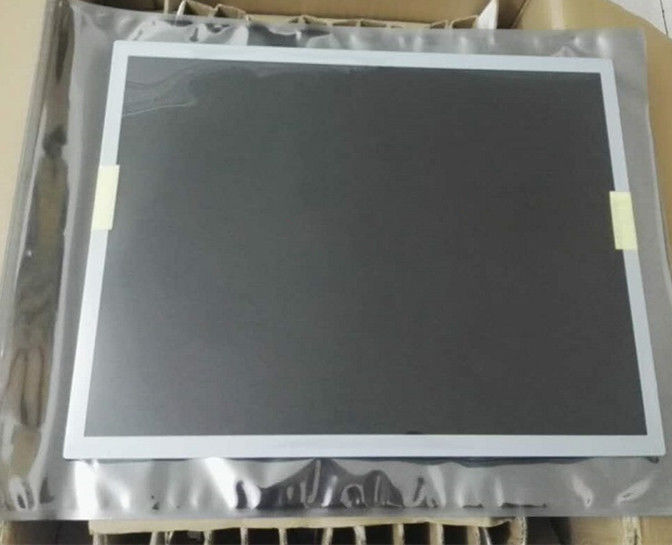

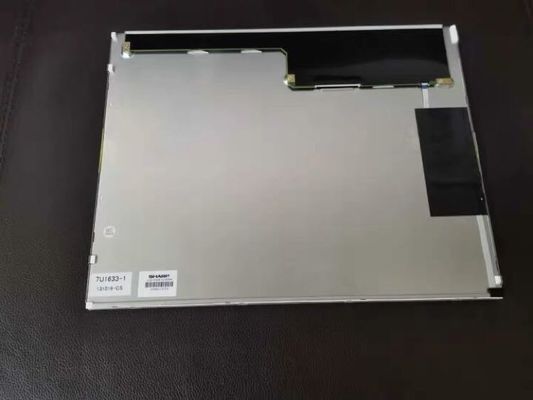

Large Image : LQ150X1LW96 Sharp 15" LCM 1024×768RGB 500cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Sharp
Certification:	ISO9001
Model Number:	LQ150X1LW96

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	10 pcs / box 10.5 Kgs 435×343×341 mm (L×W×H)
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	1000PCS

Contact Now

LQ150X1LW96 Sharp 15" LCM 1024×768RGB 500cd/m² INDUSTRIAL LCD DISPLAY

Description

Manufacturer:	Sharp	Model Name:	LQ150X1LW96
Screen Size:	15INCH	Backlight:	WLED , 50K Hours , With LED Driver
Pixel Number:	1024(RGB)×768 (XGA) 85PPI	Signal Type:	LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Luminance:	500cd/m²	Viewing Angle:	85/85/85/85 (Typ.)(CR≥10)
Max. Ratings:	Storage Temp.: -25 ~ 70 °C Operating Temp.: -20 ~ 70 °C
High Light:	XGA Industrial LCD Panel , SVGA Sharp TFT LCD Screen

LQ150 Series LQ150X1LW96 LQ150X1LW95 LQ150X1LW94 LQ150X1LW93 LQ150X1LW92

Sharp LQ150X1LW96 Application Details

Basic Information :	Brand SHARP LQ150X1LW96Model Type a-Si TFT-LCD , LCM Used For Screen Size 15.0 inch Alias -
Environment :	Storage Temp. -25 ~ 70 °C Operating Temp. -20 ~ 70 °C RoHS 1.0G (9.8 m/s²)Vibration

Sharp LQ150X1LW96 Mechanical Details

Pixel Features :	Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size :	Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) 307.4(H) × 231.3(V) Outline Dim.(mm) 326.5(H) × 253.5(V) Depth(mm) 9.6±0.5
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight 950g (Max.) Treatment Antiglare, Hard coating (3H)

Sharp LQ150X1LW96 Optical Details

Basic Information :	Luminance(cd/m²) 500 (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode ASV, Normally Black, Transmissive Best View on Symmetry Response(ms) 35 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.300; Wy:0.325 Display Colors 262K/16.2M (6-bit / 6-bit + FRC) Color Temperature 7274K White Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 70% sRGB 91% coverage Adobe RGB 73% coverage DCI-P3 73% coverage Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ150X1LW96 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (180°)
Total Consumption:	10.0W

Sharp LQ150X1LW96 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 380/500mA (Typ./Max.)
Signal Type :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration HRS DF14-20P-1.25H(56) 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-010G

Sharp LQ150X1LW96 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 50K(Min.) (Hours)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST SM06B-SHLS-TF 1.0 mm 6 pins 1 pcs
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 12.0±1.8V Current Supply 730/1100mA (Typ./Max.)

LQ150X1LW96 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LW96 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms.
