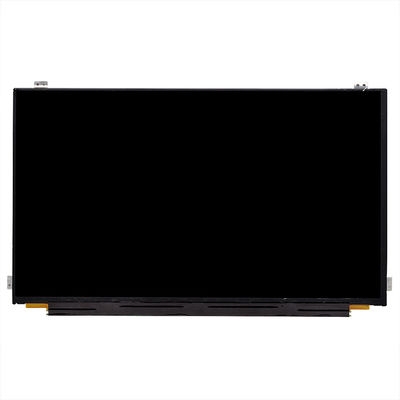

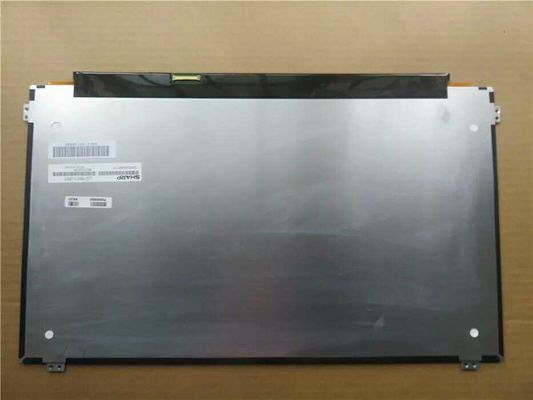

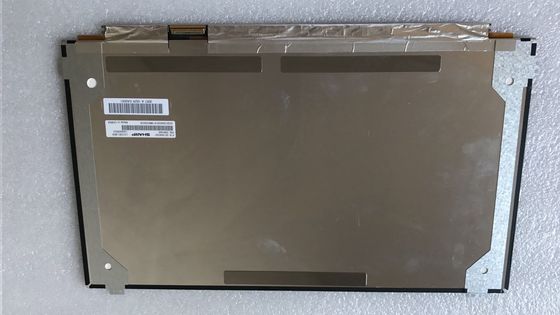

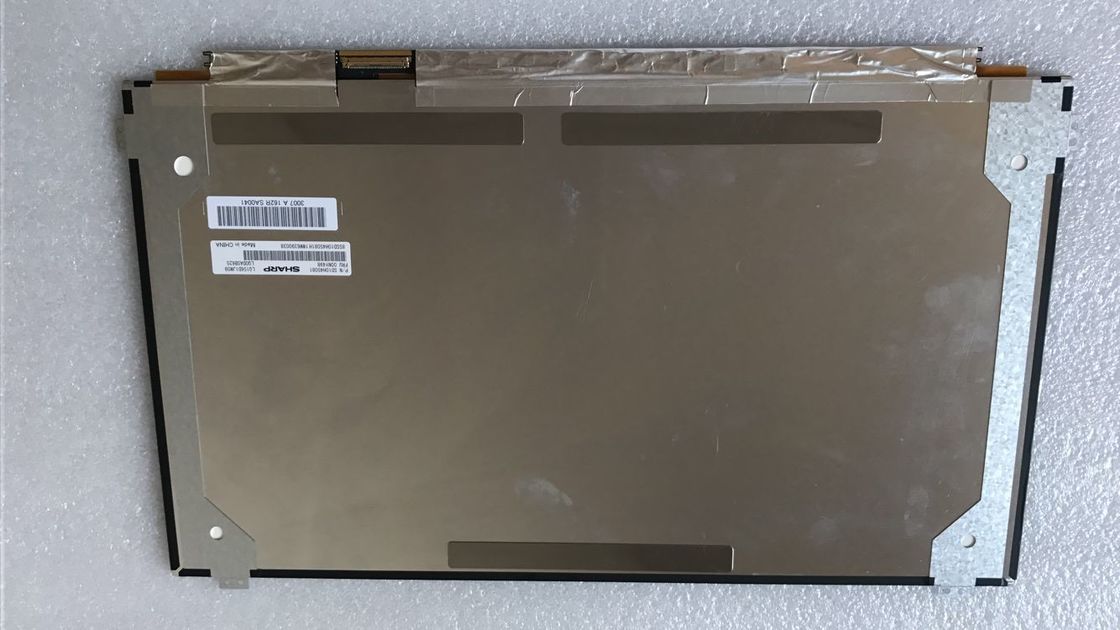

Product Details:
|
| Diagonal Size: | 15.6" | Model: | LQ156D1JW05 |
|---|---|---|---|
| Type: | Oxide TFT-LCD, LCM | Response Time: | 25 (Typ.)(Tr+Td) |
| Pixel Format: | 3840(RGB)×2160 [UHD] 282PPI | Luminance: | 300 Cd/m² (Typ.) |
| Interface Type: | EDP (4 Lanes) , 40 Pins Connector | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ156 Series LQ156D1JW05 LQ156D1JW04 LQ156D1JW02
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.030×0.090 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.090×0.090 (H×V) [282PPI] | |
| Mechanical Size : | Active Area(mm) | 345.6(H) × 194.4(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 367.98(H) × 224.66(V) | Depth(mm) | 3.1±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on left, right, up slugs | |||
| Other Spec : | Weight | 340/365g (Typ./Max.) | Treatment | Antiglare (Haze 42%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.65 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 100% coverage | DCI-P3 | 88% coverage | |
| Rec.2020 | 71% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 496/610mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.64/1.83W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20525-040E-76 | 1 pcs | 40 pins | 0.4 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 10K(Max.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 400/450mA (Typ./Max.) | ||
| Consumption | 4.8/5.4W (Typ./Max.) | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
