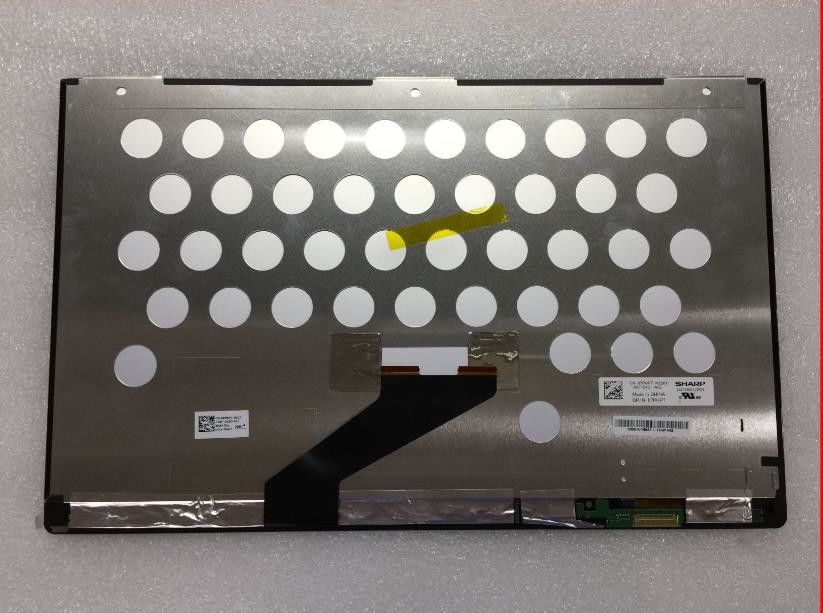

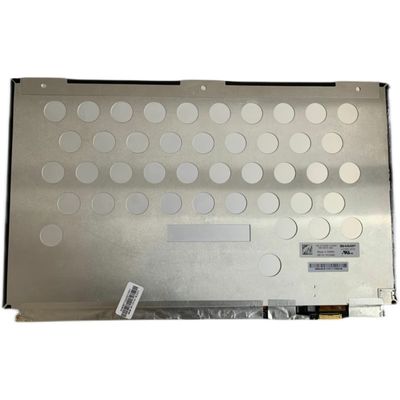

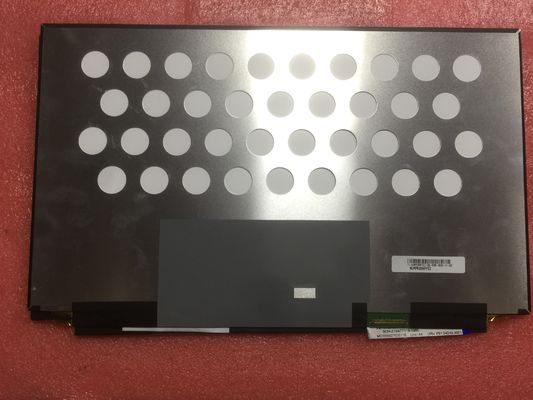

Product Details:
|
| Panel Size: | 15.6" | Panel Model: | LQ156D1JW33 |
|---|---|---|---|
| Signal Interface: | EDP (4 Lanes) , 40 Pins Connector | Lamp Type: | WLED , 12K Hours , With LED Driver |
| Brightness: | 350 Cd/m² (Typ.) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Resolution: | 3840(RGB)×2160, UHD, 282PPI | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ156 Series LQ156D1JW37 LQ156D1JW33 LQ156D1JW31 LQ156D1JW06
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.295; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7519K | White Uniformity | 1.25/1.53 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 100% coverage | DCI-P3 | 88% coverage | |
| Rec.2020 | 71% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.030×0.090 mm | Pixel Pitch(W×H) | 0.090×0.090 mm [282PPI] | |
| Physical Size : | Active Viewing | 345.6(W)×194.4(H) mm | Overall Dim. | 351.9(W)×220.2(H) mm |
| Bezel Opening | - | Overall Depth | 2.62/2.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 295/315g (Typ./Max.) | Surface | Antiglare (Haze 42%), Hard coating (3H) |
| Signal Electrical : | Input Current | 740/830mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.44/2.74W (Typ./Max.) | Signal Interface | eDP (4 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20525-040E-02 | 1 pcs | 0.4 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 12K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 528/mA (Typ.) | Input Voltage | 7.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 6.33/6.97W (Typ./Max.) | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
