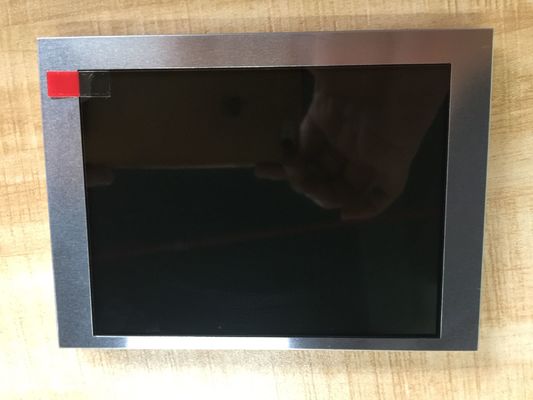

Product Details:
|
| MODEL NUMBER: | TM057KDHG03 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320(RGB)×240 [QVGA] 70PPI |
| Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |
| High Light: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Basic Information : | Brand | Model | TM057KDHG03 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 5.7" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape typ |
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 20/30 (Typ./Max.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.324; Y:0.362 | Display Colors | 262K (6-bit) |
| Color Temperature | 5814K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
Transmissive LCM product, TM057KDHG03 can provides 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/30 (Typ./Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. TM057KDHG03 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of TM057KDHG03 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with TIANMA or it's distributor
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | ||
|---|---|---|---|---|
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
