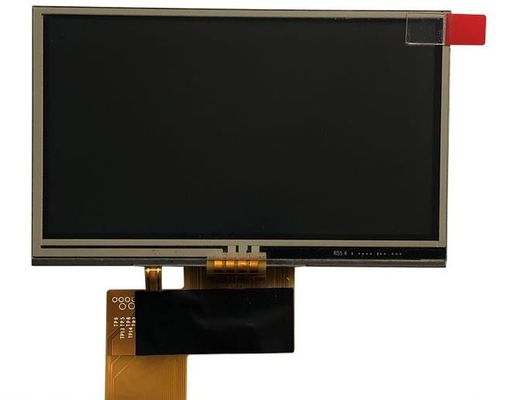

Product Details:
|
| Size: | 7.0 | Resolution: | 1024(RGB)×600 [WSVGA] 169PPI |
|---|---|---|---|
| Panel Type: | LCM , A-Si TFT-LCD | Pixel Format: | RGB Vertical Stripe |
| Outline(mm): | 165.75(H)×105.39(V) ×3.7(D) Mm | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Operating Mode: | TN, Normally White, Transmissive | Lamp Type: | WLED [3S6P] , 20K Hours , W/O Driver |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | 320cd/m² TIANMA TFT,WSVGA 169PPI TIANMA TFT,TM070DDHG03-40 |
||
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
| Pixel Features : | Pixel Format | 1024(RGB)×600 [WSVGA] | Dot Pitch | 0.050×0.150 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.150×0.150 mm (H×V) [169PPI] | |
| Mechanical Size : | Display Area | 153.6×90 mm (H×V) | Bezel Area | 156.2×92.6 mm (H×V) |
| Outline Dim. | 165.75×105.39 mm (H×V) | Outline Depth | 3.4±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 17:10 (H:V) | Shape Style | - | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 112g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 320cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 20 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.306; Wy:0.327 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6892K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/10.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | 16/30/0.3/0.3mA (Typ.)(IDD/AIDD/IGH/IGL) | ||
| Consumption | 388/600mW (Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
