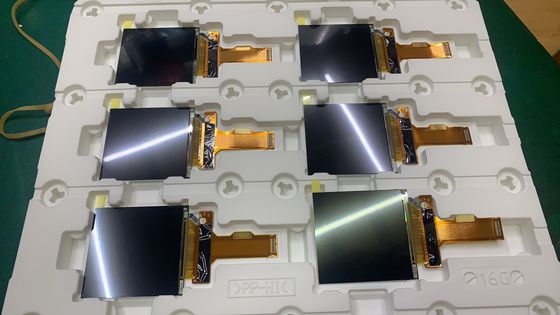

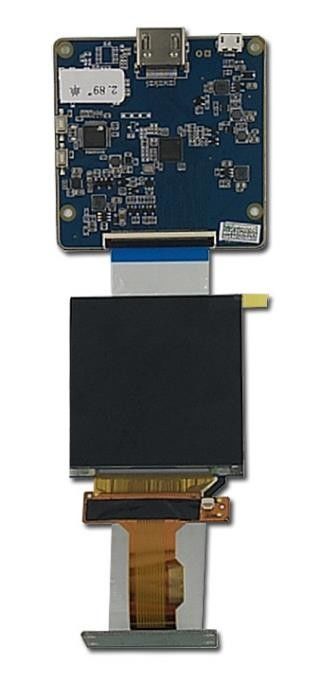

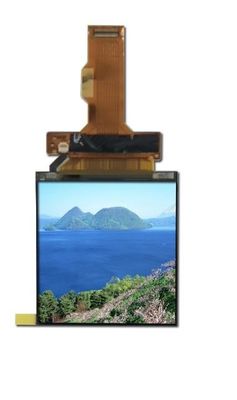

Product Details:
|
| MODEL NUMBER: | LS029B3SX04 | SIZE: | 2.9" |
|---|---|---|---|
| BRIGHTNESS: | 150CD/M2 | BRAND: | SHARP |
| RESOLUTION: | 1440×1440RGB | Outline Size: | 54.24(W)×59.02(H) ×1.51(D) Mm |
| Display Area: | 51.84(W)×51.84(H) Mm | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LS029 Series LS029B3SX04 LS029B3SX02 LS029B3SX01 LS029B3SX05
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS029B3SX04 | CG-Silicon , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Refresh Rate : | 120Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in R63423 |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 150 cd/m² (Typ.) | SFR, Normally Black, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | - | 4.6/3.5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8015K | 16.7M (8-bit) | X:0.292; Y:0.314 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 96% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Min.)(9 points) | ||
| Screen Size : | 2.9" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1440(RGB)×1440 | RGB Vertical Stripe | 0.012×0.036 mm | 0.036×0.036 mm [705PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 51.84×51.84 mm | - | 54.24×59.02 mm | 1.37±0.14 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 1:1 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 7.20g (Typ.) | - | - | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 2 strings | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 95/100mA (Typ./Max.) | 3.58W (Typ.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/5.5/-5.5V (Typ.)(VDDI/AVDD/AVEE) | 80/17/16mA (Typ.)(IDDI/AIDD/AIEE) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (2 ch, 4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | WP7B-S040VA1 | 1 pcs | 40 pins | 0.4 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 480 pcs / box | 9.30 Kgs | 580×365×279 mm (L×W×H) |
