TM090RDSG06 TIANMA 9.0 inch 800(RGB)×480 INDUSTRIAL LCD DISPLAY 70/70/50/70 (Typ.)(CR≥10

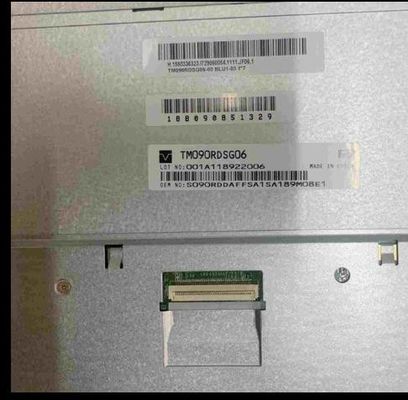

Large Image : TM090RDSG06 TIANMA 9.0 inch 800(RGB)×480 INDUSTRIAL LCD DISPLAY 70/70/50/70 (Typ.)(CR≥10

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM090RDSG06

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	3000PCS

Contact Now

TM090RDSG06 TIANMA 9.0 inch 800(RGB)×480 INDUSTRIAL LCD DISPLAY 70/70/50/70 (Typ.)(CR≥10

Description

MODEL NUMBER:	TM090RDSG06	BRAND:	TIANMA
SIZE:	9.0INCH	RESOLUTION:	800(RGB)×480 [WVGA] 104PPI
SIGNAL LNTERFACE:	LVDS	Lamp Type:	WLED
Viewing Angle:	70/70/50/70 (Typ.)(CR≥10	TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:	QVGA TIANMA LCD Panel , SVGA TIANMA LCD Panel

TIANMA TM090RDSG06 Application Details

Basic Information :	Brand Model TM090RDSG06 Type a-Si TFT-LCD , LCM Used For Screen Size 9.0 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :

TIANMA TM090RDSG06 Mechanical Details

Pixel Features :	Resolution 800(RGB)×480, WVGA Dot Pitch(mm) 0.0825×0.2327 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2475×0.2327 (H×V) [104PPI]
Mechanical Size :	Active Area(mm) 198(H) × 111.696(V) Bezel Area(mm) -
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 16:9 (H:V) Orientation Landscape type
Other Spec :	Weight 285g (Typ.) Treatment

TIANMA TM090RDSG06 Optical Details

Basic Information :	Luminance(cd/m²) - Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 25 (Typ.)(Tr+Td)

TIANMA TM090RDSG06 Electronics Details

Reverse Scan :	Yes (U/D, L/R)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM090RDSG06 TIANMA 9.0 inch 800(RGB)×480 INDUSTRIAL LCD DISPLAY 70/70/50/70 (Typ.)(CR≥10 0
