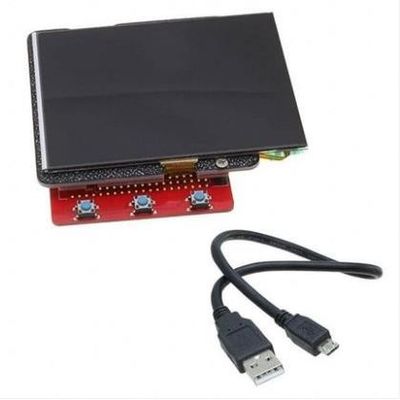

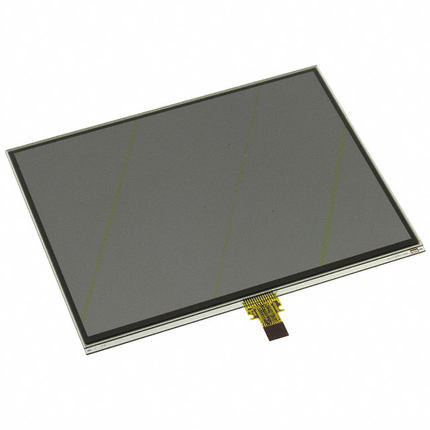

Product Details:
|
| Panel Model: | LS044Q7DH01 | Size: | 4.4" |
|---|---|---|---|
| Resolution: | 320×240, QVGA, 90PPI | Panel Type: | CG-Silicon, LCM |
| Outline Size: | 94.8(W)×75.2(H) Mm | Response Time: | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle: | 60/60/60/60 (Typ.) | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LS044Q7DH01 | CG-Silicon , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - |
| Screen Size : | 4.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320×240, QVGA | Rectangle | 0.280×0.280 mm | 0.280×0.280 mm [90PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 89.6×67.2 mm | - | 94.8×75.2 mm | 1.64 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 26.0g | - | Antiglare, Hard coating (3H) | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0/5.0V (VDD/VDDA) | - | 600uW (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 10 pins | 0.5 mm | ||||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | Normally White, Transflective | 18:1 (Typ.) (Reflective) | |
| Good View at | Viewing Angle | Response Time | |
| - | 60/60/60/60 (Typ.)(CR≥10) | 10/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6802K | Monochrome (1-bit) | X:0.307; Y:0.330 | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 17.5% (Typ.) |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 180 pcs / box | 8.8 Kgs | 578×382×153 mm (L×W×H) |
LS044Q7DH01 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 89.6(W)×67.2(H) mm, outline size of 94.8(W)×75.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 26.0g. As a Normally White, Transflective LCM product, LS044Q7DH01 can provides , 18:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)
