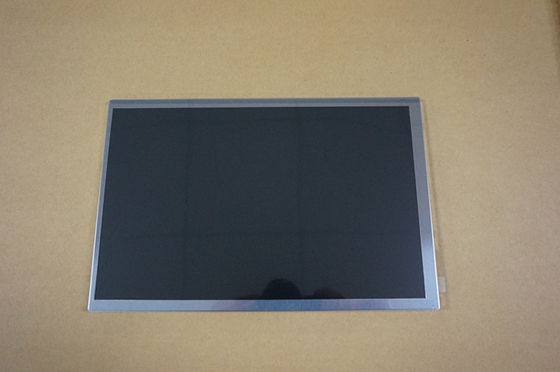

Product Details:
|
| MODEL NUMBER: | TX26D202VM0BAA | BRAND: | KOE |
|---|---|---|---|
| SIZE: | 10.1INCH | RESOLUTION: | 1920(RGB)×1200, WUXGA, 224PPI |
| BRIGHTNESS: | 800 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | TX26D202VM0BAA | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 10.1" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | Vibration | 2.0G (19.6 m/s²) | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.03775×0.11325 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.11325×0.11325 (H×V) [224PPI] | |
| Mechanical Size : | Active Area(mm) | 217.44(H) × 135.9(V) | Bezel Area(mm) | 219.44(H) × 137.90(V) |
| Outline Dim.(mm) | 232.1(H) × 153.2(V) | Depth(mm) | 4.69/7.62 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 284g | Treatment | |
| Basic Information : | Luminance(cd/m²) | 800 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.310 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7525K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 56% | sRGB | 77% coverage |
| Adobe RGB | 59% coverage | DCI-P3 | 58% coverage | |
| Rec.2020 | 42% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 7.03W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 670/800mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.21W (Typ.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| molex | 51296-5094 | 1 pcs | 50 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 40K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.0V | Current Supply | 640/760mA (Typ./Max.) | ||
| Consumption | 7.68W (Typ.) | |||||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TX26D202VM0BAA | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | ||
| Designed For : |
|
|||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 217.44(W)×135.9(H) mm, outline size of 232.1(W)×153.2(H)×7.62(D) mm, viewing area size of 219.44(W)×137.90(H) mm, net weight of 284g. As a IPS, Normally Black, Transmissive LCM product, TX26D202VM0BAA can provides 800 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. TX26D202VM0BAA utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.).
