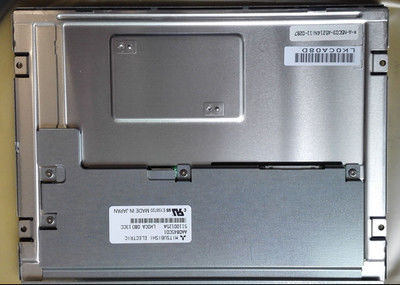

Product Details:
|
| MODEL NUMBER: | AA084VC04 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 8.4 Inch | RESOLUTION: | 640(RGB)×480, VGA, 122PPI |
| BRIGHTNESS: | 480 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| High Light: | TFT LCD Display SVGA 119PPI,LVDS TFT LCD Module |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| AA084VC04 | a-Si TFT-LCD , LCM | T-51638D084J-FW-A-AC | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -20 ~ 80 °C |
| Screen Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.089×0.267 mm | 0.267×0.267 mm [95PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.88×128.16 mm | 174.9×132.2 mm | 199.5×149 mm | 11.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 360g (Typ.) | - | Hard coating (2H), Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 480 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 65/65/50/60 (Typ.)(CR≥10) | 6/19 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6611K | 262K (6-bit) | X:0.311; Y:0.327 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 39% | 55% | 41% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 41% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Min.) | 2 pcs | Straight | Replaceable | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 450V (Typ.) | 3.0/6.5/7.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 30/60KHz (Typ.) | 1000/1200/1350V (Min.)(Ta=+25/0/-20℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 2 pins | 8.0 mm | BLL-2PINS-HL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 240/400mA (Typ./Max.)(ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.8V; 2.4V≤VIH≤5.5V | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9B-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010F | |
