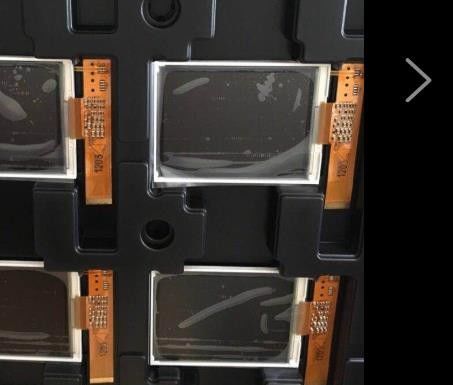

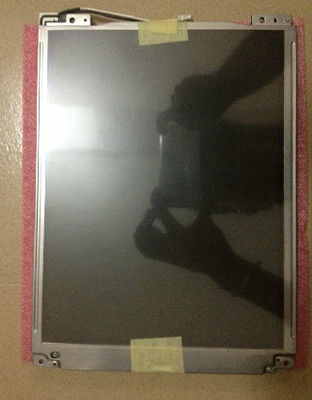

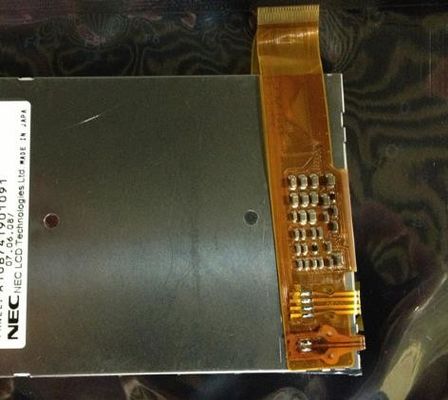

Product Details:
|
| MODEL NUMBER: | NL4864HL11-02A | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 3.5INCH | RESOLUTION: | 480×640RGB |
| BRIGHTNESS: | 220CD/M2 | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C | ||
| Highlight: | NLT 3.5" NEC TFT Display,220nits NEC TFT Display,LCM 480×640 NEC TFT Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL4864HL11-02A | LTPS TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 70 °C | 2.0G (19.6 m/s²) |
| Screen Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×640, VGA | RGB Vertical Stripe | 0.037×0.111 mm | 0.111×0.111 mm [228PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 53.28×71.04 mm | - | 63.5×85 mm | 3.0±0.2 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 25.0/28.0g (Typ./Max.) | - | Clear, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transflective | 180:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 30/30/30/35 (Typ.)(CR≥10) | 7/23 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7525K | 262K (6-bit) | X:0.300; Y:0.310 | |
| White Uniformity : | 1.43/1.67 (Typ./Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 7% (Typ) | |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 632mW (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 12K(Typ.) | - | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 25.6/28.0V (Typ./Max.) | 20/22mA (Typ./Max.) | 512mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.0/3.0V (Typ.)(VCC/VCCIO) | 40/0.03mA (Typ.)(ICC/ICCIO) | 120mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VCCIO; 0.8VCCIO≤VIH≤VCCIO | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) + SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 45 pins | 3.0 mm | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
