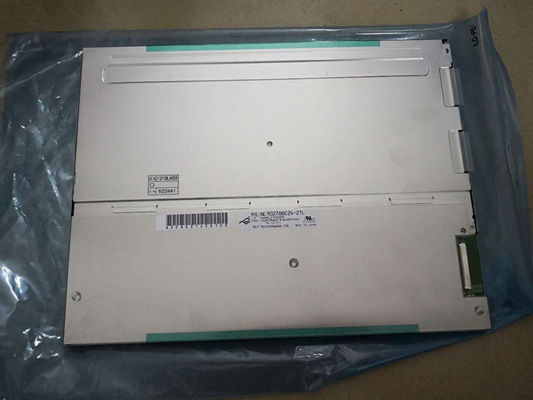

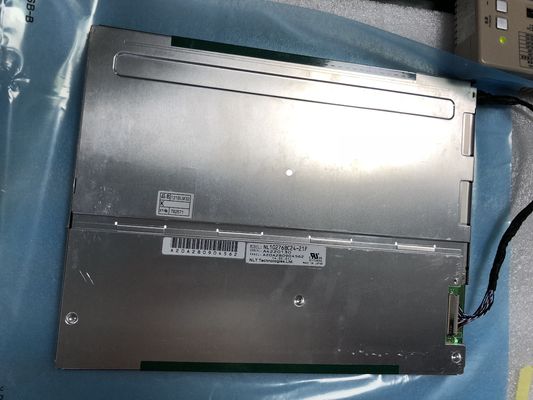

Product Details:
|
| MODEL NUMBER: | NL10276BC24-21F | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 1000CD/M2 | Lamp Type: | LVDS |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NL10276BC24-21F | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.080×0.240 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 245.76×184.32 mm | 249.0×187.5 mm | 260.5×203 mm | 8.7±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 490/540g (Typ.Max.) | - | Clear, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 1000 cd/m² (Typ.) | TN, Normally White, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/80/80 (Typ.)(CR≥10) | 3/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.7M (6-bit / 8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 40% | 56% | 42% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 41% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 70K(Typ.) | 5 strings | 5 strings | Replaceable (121LHS32) | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0/25.1V (Typ.)(800/1000nit) | 50/70mA (Typ.)(800/1000nit) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| Optional | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM10B-SRSS-TB | 1 pcs | 10 pins | 1.0 mm | BLE-10PINS-ACACACACAC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 460/720mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-SE20P-HFE | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-170A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
