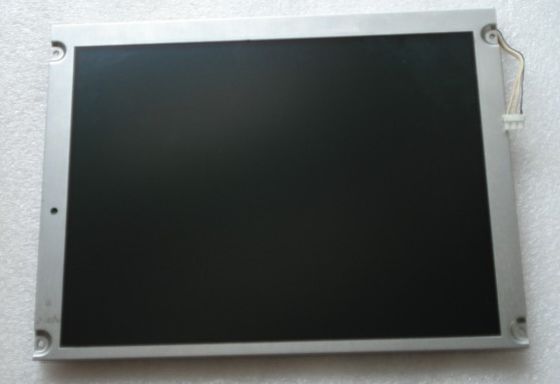

Product Details:
|
| MODEL NUMBER: | NL8060BC26-27 | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| NL8060BC26-27 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 70 °C | -20 ~ 80 °C | 2.0G (19.6 m/s²) | ||
| Designed For : |
|
|||
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 215.4×161.8 mm | 243×185.1 mm | 10.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 475/500g (Typ./Max.) | Clear, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | SA-SFT, Normally Black, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 25/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 40% | 56% | 42% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 42% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 430/275mA (Typ.)(3.3V/5.0V) | 3.3/5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | CMOS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9C-41P-1V | 1 pcs | 1.0 mm | 41 pins | DRGB-41P1C6B-010B | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 2 pcs | 50K(Typ.) | Replaceable (104LHS45) | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.0/5.0/5.5mA (Min./Typ./Max.) | 520V (Typ.) | |||||
| Turn-on Voltage | Lamp Frequency | |||||
| 850/1100V (Min.)(Ta=+25/-10℃) | 50/70KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-LHH | |
