Product Details:
|
| MODEL NUMBER: | NL6448BC33-95D | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 200CD/M2 | Lamp Type: | CCFL |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -25 ~ 70 °C | ||
| High Light: | LVDS NEC TFT Display,VGA 76PPI TFT LCD Panel |
||

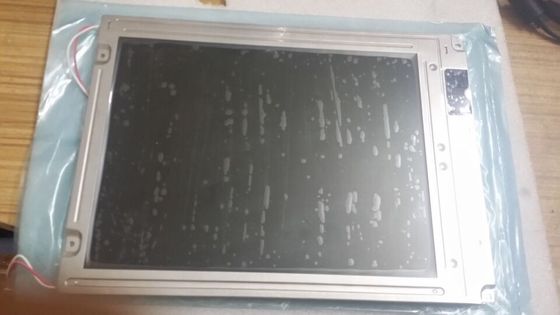

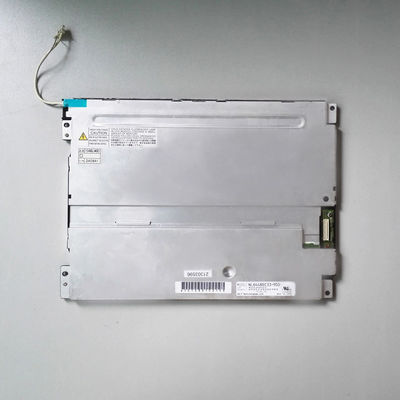

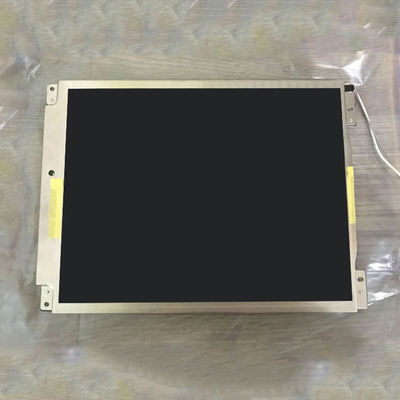

NL6448BC33-95D is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -25 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²).
NEC NL6448BC33-95D Application Details
| Basic Information : | Brand | Model | NL6448BC33-95D | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 10.4" | Alias | - | |
| Environment : | Storage Temp. | -25 ~~ 70 °C | Operating Temp. | 0 ~~ 55 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.110×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 216.2(H) × 163.4(V) |
| Outline Dim.(mm) | 246.5(H) × 179.4(V) | Depth(mm) | 9.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Spec : | Weight | 530/550g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 10/40 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VCC) | Current Supply | 300/200mA (Typ.)(3.3/5.0V) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9C-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010F | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 1 pcs | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 520V (Typ.) | Current Supply | 2.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 30/35/60KHz (Min./Typ./Max.) | Startup Voltage | 850/1150V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
