C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

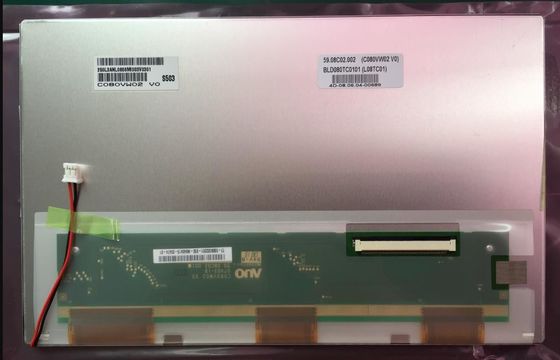

Large Image :  C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C080VW02 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD75
Packaging Details: 30 pcs / box 9.2 Kgs 520×340×250 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 120PCS
Contact Now

C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C080VW02 V0 BRAND: AUO
SIZE: 8INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 400CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C
High Light:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO C080VW02 V0 Application Details

Basic Detail :
Manufacturer
C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
Model Name
C080VW02 V0
Panel Type
a-Si TFT-LCD , LCM
Another Name
C080VW02 V.0
Panel Size
8.0 inch
Designed For
  • C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 1
Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-40 ~ 85 °C
RoHS
C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 2
Vibration Level
2.9G (28.4 m/s²)



AUO C080VW02 V0 Optical Details

Basic Detail :
Luminance
400 cd/m² (Min.)
Contrast Ratio
300:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
15/20 (Typ.)(Tr/Td) ms
Viewing Angle
60/60/40/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Support Color
262K (6-bit)
Color Temperature
6638K
White Variation
-



AUO C080VW02 V0 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.073×0.219 mm
Pixel Pitch(W×H)
0.219×0.219 mm [115PPI]
Physical Size :
Active Viewing
175.2(W)×105.12(H) mm
Overall Dim.
186.5(W)×117.22(H) mm
Bezel Opening
177.0(W)×106.92(H) mm
Overall Depth
5.3 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Other Detail :
Mass
180±18g
Surface
Antiglare



AUO C080VW02 V0 Electronics Details

Refresh Rate :
60Hz Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Need external T-CON: UPS-161



AUO C080VW02 V0 Interface Detail

Signal Electrical :
Input Current
3.5/20/0.1/-0.1mA (Typ.)(ICC/IDD/IGH/IGL)
Input Voltage
3.3/9.8/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 4
IRISO
IMSA-9634S-60Y902
0.5 mm
60 pins
1 pcs


AUO C080VW02 V0 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
Array
Lamp Life
10K(Min.) (Hours)
Lamp Electrical :
Input Voltage
20.0/22.0V (Typ./Max.)
Input Current
150mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment C080VW02 V0 AUO 8INCH 800×480RGB 400CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 5
JST
PHR-2
2.0 mm
2 pins
1 pcs
BLE-2PINS-AC
Backlight Driver :
No

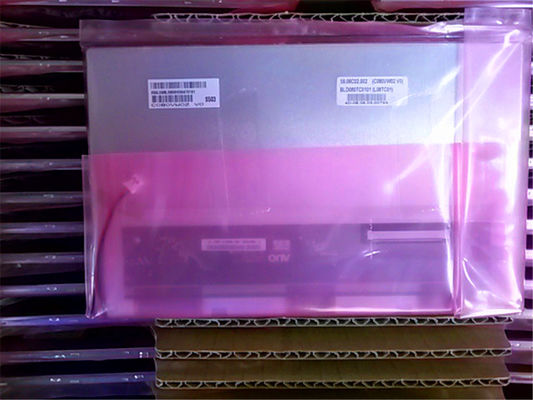

AUO C080VW02 V0 Packing Details

Package Box : Amount Size (L×W×H) Weight
30 pcs / box 9.2 Kgs 520×340×250 mm
