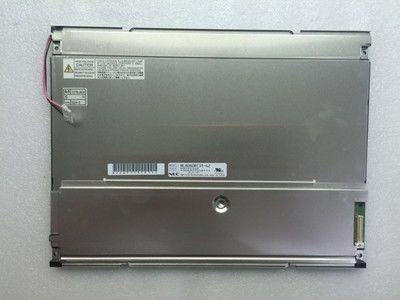

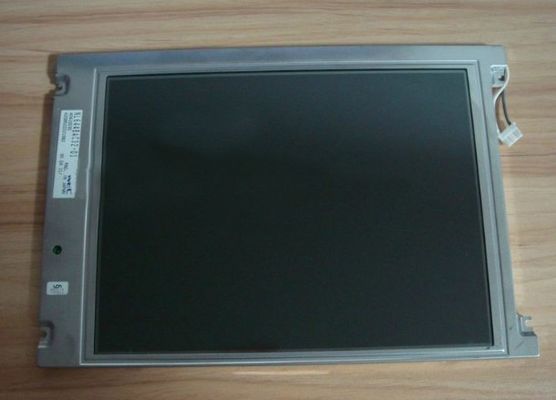

Product Details:
|
MODEL NUMBER: | NL6448AC33-24 | BRAND: | NEC |
---|---|---|---|
SIZE: | 10.4INCH | RESOLUTION: | 640×480RGB |
BRIGHTNESS: | 190CD/M2 | Lamp Type: | CCFL |
TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
Basic Information : | Brand | Model | Type | Model Alias |
---|---|---|---|---|
NL6448AC33-24 | a-Si TFT-LCD , LCM | - | ||
Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
0 ~ 50 °C | -20 ~ 60 °C | 2.0G (19.6 m/s²) | ||
Designed For : |
|
Panel Size : | 10.4 inch | |||
---|---|---|---|---|
Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
211.2×158.4 mm | 215.4×161.8 mm | 243×185.1 mm | 10.7±0.5 mm | |
Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
Flat Rectangle | 4:3 (W : H) | Landscape type | ||
Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
Other Features : | Panel Cover | Weight | Surface | |
- | 510g (Typ.)(With inverter) | - |
Basic Information : | Brightness | Operating Mode | Contrast Ratio |
---|---|---|---|
190 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 150:1 (Typ.) (Transmissive) | |
Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
80/80/80/80 (Typ.)(CR≥10) | Symmetry | 50 (Typ.)(Tr+Td) (ms) | |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
- | 262K (6-bit) | - | |
Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
Signal Electrical : | Current Input | Voltage Input | Consumption | |||
---|---|---|---|---|---|---|
400/300mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - | ||||
Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
Interface Features : | Position | Type | Interface | |||
- | Connector | CMOS (1 ch, 6-bit) | ||||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins |
Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
---|---|---|---|---|---|---|
CCFL | Edge light type (Top side) | Straight | 2 pcs | - | Replaceable (104LHS-17L) | |
Interface Features : | Position | Type | CCFL Driver | |||
- | Connector | With Inverter | ||||
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
JAE | LZ-5P-SL-SMT | 1 pcs | 1.25 mm | 5 pins | ||
JAE | IL-Z-3PL-SMTY | 1 pcs | 1.25 mm | 3 pins | ||
Driver Electrical : | Current Input | Voltage Input | Consumption | |||
0.48/0.55A (Typ./Max.) | 12.0V (Typ.) | 5.76W (Typ.) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
