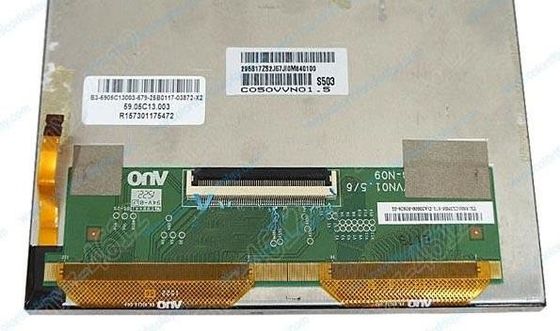

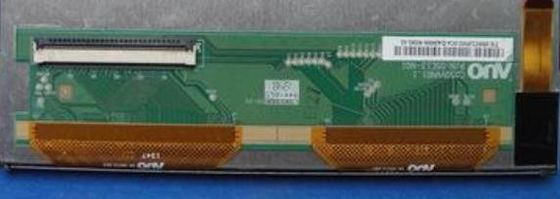

Product Details:
|
| MODEL NUMBER: | C050VVN01.5 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 5INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| Lamp Type: | WLED | Signal Interface: | LVDS |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| C050VVN01.5 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | - |
| Screen Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.04525×0.13575 mm | 0.13575×0.13575 mm [187PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 108.6×65.16 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | AMVA, Normally Black, Transmissive | 1000:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 15/30 (Max.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.2M (6-bit + FRC) | - |
| Refresh Rate : | 60Hz |
|---|
C050VVN01.5 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108.6(W)×65.16(H) mm. As a AMVA, Normally Black, Transmissive LCM product, C050VVN01.5 can provides 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/30 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of C050VVN01.5 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO.
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
