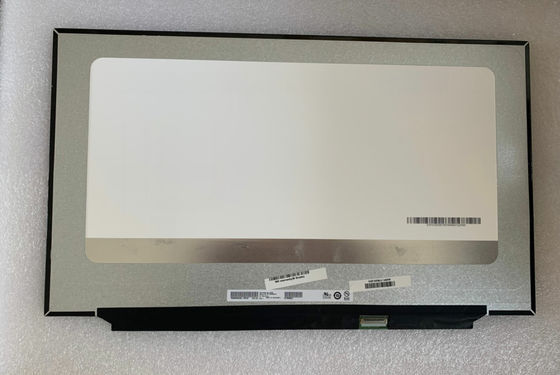

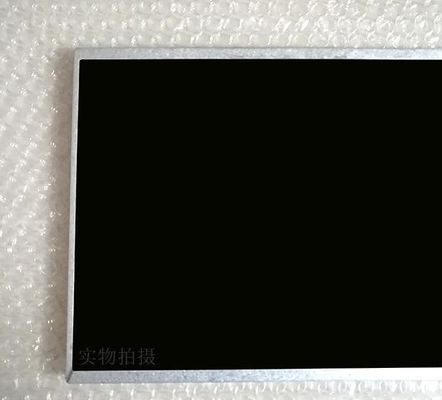

Product Details:
|
| MODEL NUMBER: | B173HAN05.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 17.3INCH | RESOLUTION: | 1920×1080RGB |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Info : | Panel Brand | Panel Model | B173HAN05.1 | |
|---|---|---|---|---|
| Diagonal Size | 17.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | AUO519D | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0663×0.1989 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1989×0.1989 mm (H×V) [127PPI] | |
| Mechanical Size : | Display Area | 381.888×214.812 mm (H×V) | Bezel Area | - |
| Outline Dim. | 389.89×238.31 mm (H×V) | Outline Depth | 3.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 500g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 8 (Typ.)(Tr+Td); 5 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 300Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 5.4W (Max.) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 2.6W (Max.) | |||||
| Signal Systerm : | eDP (4 Lanes), eDP1.3 | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.75A (Max.) | ||
| Consumption | 1.9/2.8W (Typ./Max.) | |||||

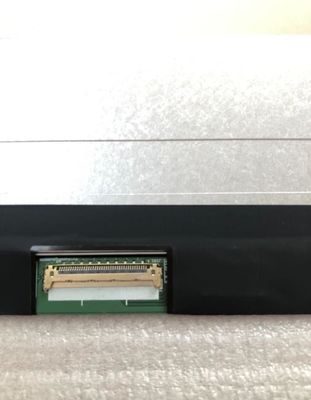

| Interface Features : | Type | Connector | Position |  |
||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20682-040E-02 | 0.4 mm | 40 pins | 1 pcs | ||
