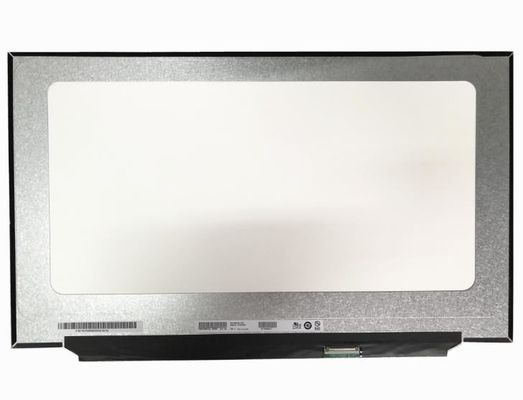

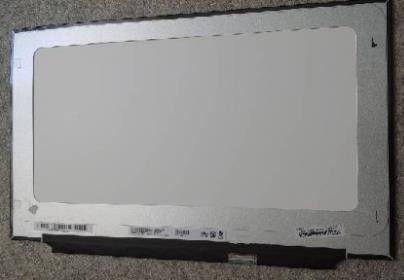

Product Details:
|
| MODEL NUMBER: | B173HAN04.7 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 17.3INCH | RESOLUTION: | 1920×1080RGB |
| BRIGHTNESS: | 250CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Info : | Panel Brand | Panel Model | B173HAN04.7 | |
|---|---|---|---|---|
| Diagonal Size | 17.3" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | AUO479D | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) | ||
| Specific Features : |
|
|||
| Remarks : | eDP1.3, DRRS, DMRRS, PSR1 | |||
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0663×0.1989 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1989×0.1989 mm (H×V) [127PPI] | |
| Mechanical Size : | Display Area | 381.888×214.812 mm (H×V) | Bezel Area | - |
| Outline Dim. | 389.89×238.31 mm (H×V) | Outline Depth | 3.3/3.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 500g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Tf) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Systerm : | eDP (2 Lanes), eDP1.3 | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 870mA (Typ./Max.) | ||
| Consumption | 1.76/2.6W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position |  |
||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20765-040E-11A | 0.5 mm | 40 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
