Product Details:
|
| Resolution: | 640(RGB)×480 (VGA) 76PPI | Panel Type: | LCM, A-Si TFT-LCD |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Brightness: | 90 Cd/m² (Typ.) |
| Viewing Angle: | 45/45/25/25 (Typ.)(CR≥10 | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Diagonal Size: | 10.4 Inch | Input Voltage: | 5.0V |
| High Light: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||

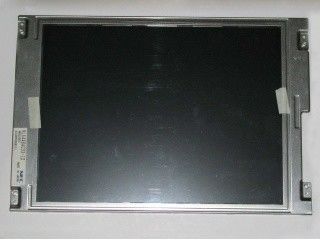

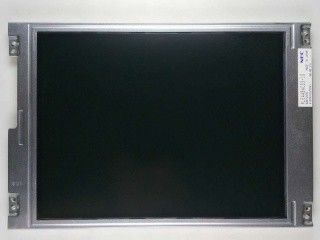

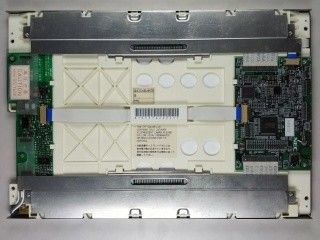

The NL6448AC33-10 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .It's general features are summarized by Panelook in the following: With Inverter . Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the information stored in Panelook this model mass production on Q4, 1994, Now this model is discontinued. There are 1 items stock and 5 suppliers of this model on Panelook. We inputted this model's specification on Mar 30 2013 for the first time, and the latest update on Jul 27 2023. If you want to embed NL6448AC33-10 LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail. The NL6448AC33-10 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
NEC NL6448AC33-10 Mechanical Details
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.110×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 220.9(H) × 166.0(V) |
| Outline Dim.(mm) | 270(H) × 183(V) | Depth(mm) | 13.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.5) on left, right bezel | |||
| Other Spec : | Weight | 700g (Typ.) | Treatment | - |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 200mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | CMOS (1 ch, 4-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | IL-Z-R10PL-SMTY | 1 pcs | 10 pins | 1.25 mm | ||
| JAE | IL-Z-R13PL-SMTY | 1 pcs | 13 pins | 1.25 mm | ||
| JAE | IL-Z-R11PL-SMTY | 1 pcs | 11 pins | 1.25 mm | ||
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | - | |
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Voltage Supply | 5.2/20V (Min./Max.) | Current Supply | - | ||
| Consumption | 3.8 / 2.7W (Typ.) (12V / 7.2V) | |||||
