Product Details:
|

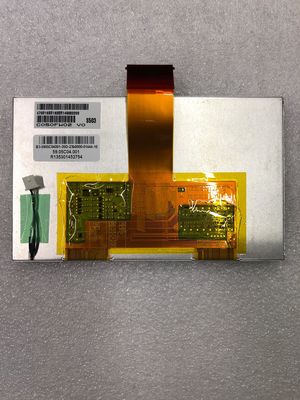

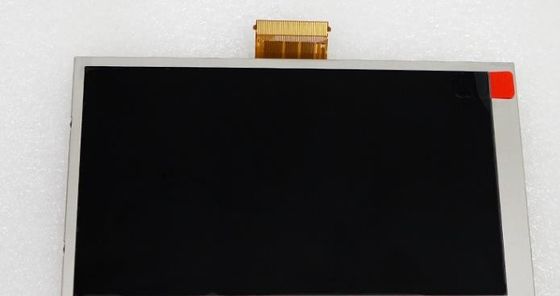

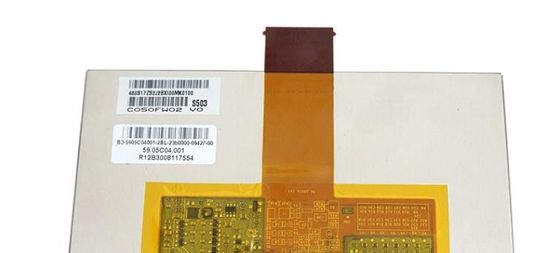

| MODEL NUMBER: | C050FW02 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 5INCH | RESOLUTION: | 480×234RGB |
| BRIGHTNESS: | 700CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Detail : | Manufacturer | Model Name | C050FW02 V0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | C050FW02 V.0 | |
| Panel Size | 5.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| Vibration Level | 2.9G (28.4 m/s²) | RoHS |
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 16 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.330 | Support Color | 16.2M (8-bit) |
| Color Temperature | 6477K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 91% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 480(RGB)×234 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.077×0.267 mm | Pixel Pitch(W×H) | 0.267×0.267 mm [106PPI] | |
| Physical Size : | Active Viewing | 110.88(W)×62.478(H) mm | Overall Dim. | 124(W)×75.2(H) mm |
| Bezel Opening | 113.28(W)×64.878(H) mm | Overall Depth | 6.2/8.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 86.0g | Surface | - |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Input Current | 170/220mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 545/770mW (Typ./Max.) | Signal Interface | Parallel RGB (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S1P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80/85mA (Typ./Max.) | Input Voltage | 21.0/24.0V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 51004-0200 | 1 pcs | 2.0 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
