Product Details:
|
| Panel Size: | 6.5" | Resolution: | 640(RGB)×480, VGA, 122PPI |
|---|---|---|---|
| SDisplay Areatripe Display Area: | 132.48(W)×99.36(H) Mm | Display Colors: | 262K 40% NTSC |
| Environment: | -10 ~ 70 °C | Panel Type: | A-Si TFT-LCD, LCM |
| Pixel Format: | RGB Vertical Stripe | Surface: | Antiglare, Hard Coating (2H) |
| Contrast Ratio: | 600:1 (Typ.) (TM) | Lamp Type: | 2 Pcs CCFL , Without Driver |
| High Light: | NL6448BC20-18D,6.5 INCH TFT LCD Display,122PPI TFT LCD Display |
||

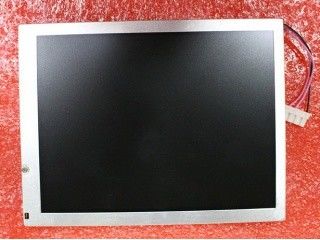

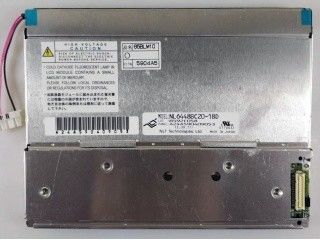

NL6448BC20-18D 6.5 INCH NEC TFT-LCD 640(RGB)×480 122PPI PIXEL -30 ~ 80 °C industrial LCD panel
1. Main Information:
NEC LCD Technologies, Ltd. (hereafter called NEC) NL6448BC20-18D is a 6.5 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, 180° Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc
| Screen Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.069×0.207 mm | 0.207×0.207 mm [122PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 132.48×99.36 mm | 135.9×102.8 mm | 153×118 mm | 10.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 205/215g (Typ./Max.) | - | Antiglare, Hard coating (2H) | ||
| Holes & Brackets : | Side mounting holes (4-M2) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/80/60 (Typ.)(CR≥10) | 6/19 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 41% | 57% | 43% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 42% | 30% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | - | 2 pcs | Straight | Replaceable (65LHS10) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 360V (Typ.) | 2.0/5.0/5.5mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 50/55/60KHz (Min./Typ./Max.) | 870/960V (Min.)(Ta=+25/-10℃) | |||||

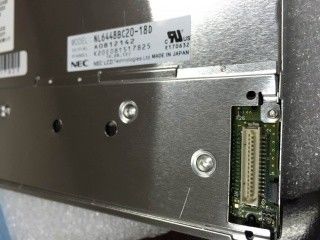

| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-04VS-1 | 1 pcs | 4 pins | 4.0 mm | BLL-4PINS-HHNL | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
