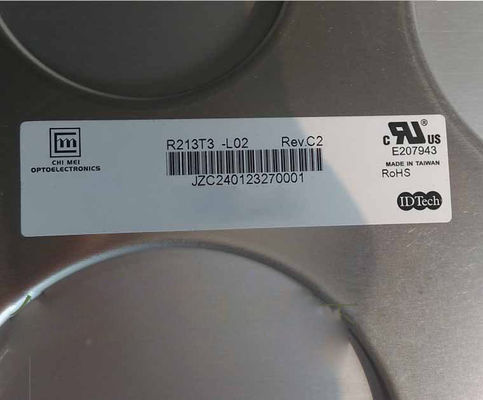

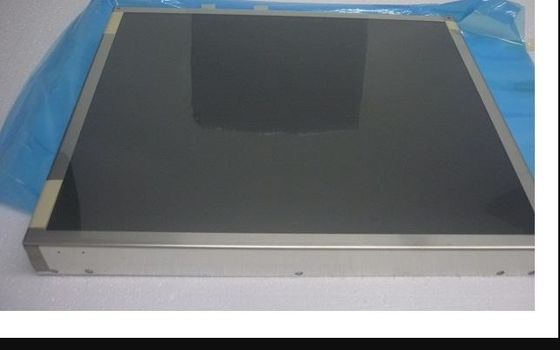

Product Details:
|

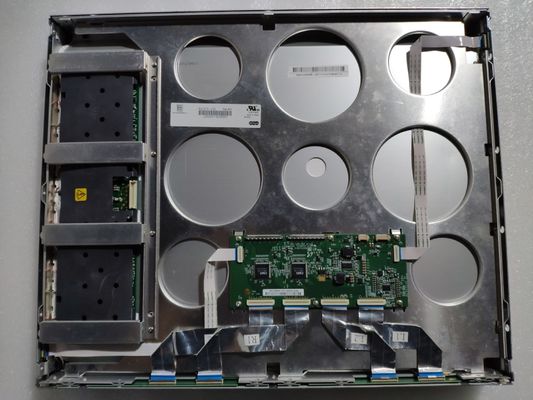

| MODEL NUMBER: | R213T3-L02 | BRAND: | CMO |
|---|---|---|---|
| SIZE: | 21.3 Inch | Outline(mm): | 459.8 × 375.3 (H×V×D) |
| Lamp Type: | WLED | RESOLUTION: | 2560(LCR)×2048, QSXGA, 153PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Signal Interface: | LVDS | Active Area(mm): | 422.4 × 337.92 (H×V) |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| R213T3-L02 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | 85/85/85/85 (Typ.)(CR≥20) | 18/18 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | DD-IPS, Normally Black, Transmissive | 850 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7984K | Grayscale (8-bit) | X:0.294; Y:0.309 |
| Panel Size : | 21.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(LCR)×2048 [QSXGA] | LCR Vertical Stripe | 0.165×0.165 [153PPI] | 0.055×0.165 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 422.4(H) × 337.92(V) | 426.4(H) × 344.5(V) | 459.8(H) × 375.3(V) | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 5:4 (H:V) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | - | Straight | 50K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 740±74V | 6.5±0.5mA | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 50±4Khz | 1080/1300V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With Inverter | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | S12B-PH-SM4-TB(LF)(SN) | 2.0 mm | 12 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±0.6V | ||||||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 65.28W (Typ.) |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 0.94/1.22A (Typ./Max.) | 11.28/14.64W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (4 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSAKT2407P30HA | 1.0 mm | 30 pins | 2 pcs | ||
| JAE | IL-Z-8PL-SMTYE | 1.25 mm | 8 pins | 1 pcs | ||
| JAE | IL-Z-5PL-SMTYE | 1.25 mm | 5 pins | 1 pcs | ||
whose pixels are arranged in LCR Vertical Stripe. As for mechanical detail, it features active area of 422.4(W)×337.92(H) mm, outline size of 459.8(W)×375.3(H) mm, viewing area size of 426.4(W)×344.5(H) mm. As a DD-IPS, Normally Black, Transmissive LCM product, R213T3-L02 can provides 850:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 18/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product adopted CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With Inverter. R213T3-L02 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 73 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of R213T3-L02 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with CMO or it's distributor.
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
