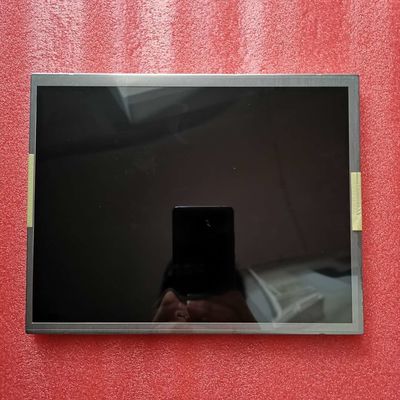

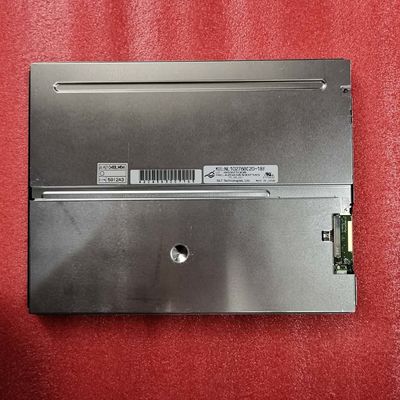

Product Details:
|

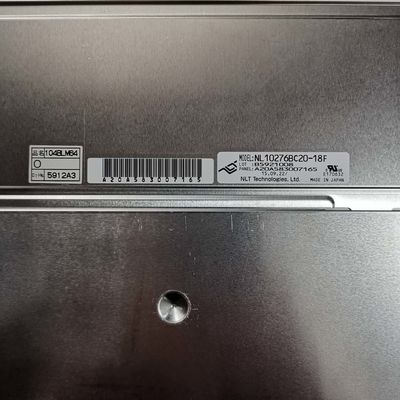

| MODEL NUMBER: | NL10276BC20-18F | BRAND: | NEC |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 800CD/M2 | Lamp Type: | LVDS |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C | ||
| Highlight: | LVDS TFT LCD Display,Transmissive NEC TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | NL10276BC20-18F | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.0G (19.6 m/s²) |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.0685×0.2055 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055×0.2055 mm (H×V) [123PPI] | |
| Mechanical Size : | Display Area | 210.4×157.8 mm (H×V) | Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dim. | 228×178.5 mm (H×V) | Outline Depth | 8.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 380/400g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Basic Information : | Brightness | 800 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 38% | sRGB | 54% coverage |
| Adobe RGB | 40% coverage | DCI-P3 | 40% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours
.
