Product Details:
|
| Size: | 12.1 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Luminance: | 450 (Typ.)(cd/m²) | View Direction: | 6 O'clock |
| Viewing Angle: | 80/80/65/75 (Typ.)(CR≥10) | Support Color: | 262K/16.2M 55% NTSC |
| Interface Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | Contrast Ratio: | 700 : 1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | 800*600 TFT LCD Panel,12.1 Inch TFT LCD Panel,TM121SDS01 |
||
1. Main Information:

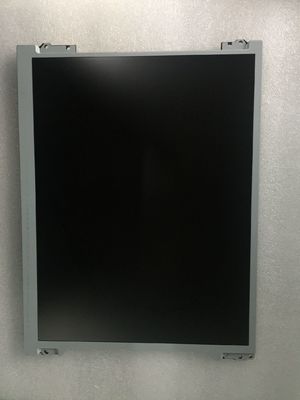

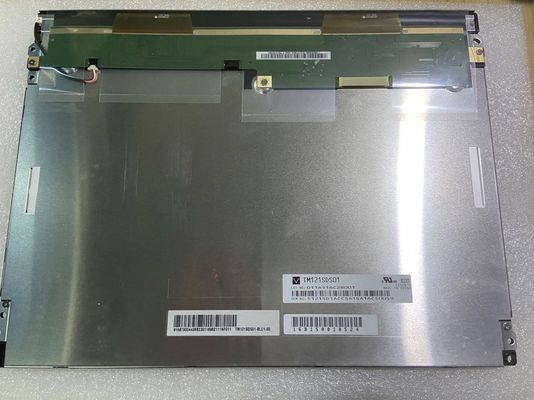

Tianma Microelectronics Co., Ltd.TM121SDS01 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .
It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte , TC0’5.0 Compliance. Based on its features,this model be applied to Industrial etc.
2. TIANMA TM121SDS01 Optical Features:
| Basic Information | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 80/80/65/75 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 65% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
3. TIANMA TM121SDS01 Mechanical Features:
| Panel Size | 12.1 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.3075×0.3075 [82PPI] | 0.1025×0.3075 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 246(H) × 184.5(V) | 249.05(H) × 188.3(V) | 279(H) × 209(V) | 9.0 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Mounting : | Face mounting holes (7 pcs) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Antiglare | ||
4. TIANMA TM121SDS01 Backlight Features:
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 25.0/33.0V (Min./Max.) | 80mA (Typ.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB240420HE | 1.25 mm | 20 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 480/660mA (Typ./Max.) | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
