Product Details:
|
| Size: | 8.4 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | View Direction: | 12 O'clock |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Support Color: | 262K/16.7M 54% NTSC |
| Interface Type: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Touch Panel: | Without | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | 54% NTSC Tianma TFT,8.4 Inch Tianma TFT,TM084SDHG01 |
||
1. Main Information:

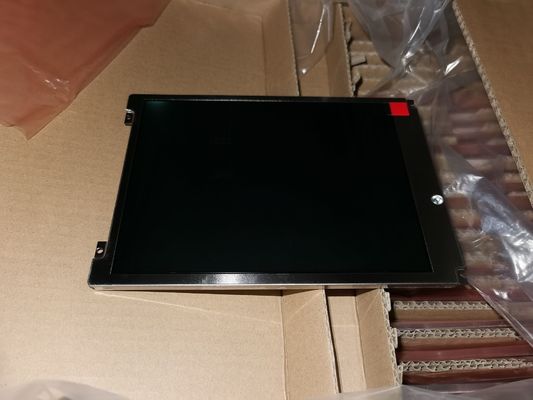

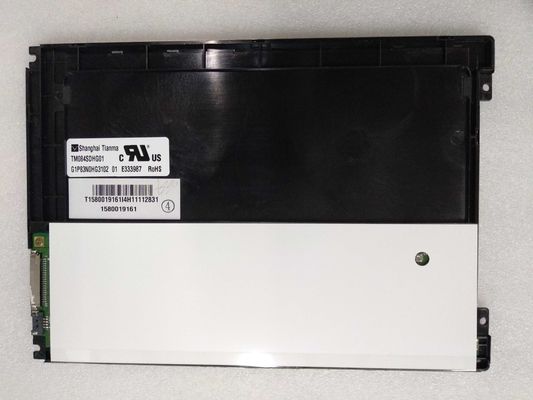

Tianma Microelectronics Co., Ltd.TM084SDHG01 is a 8.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features,this model be applied to Industrial etc.
2. TIANMA TM084SDHG01 Mechanical Features:
| Screen Size | 8.4 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.4×127.8 mm | 173.2×130.6 mm | 203×142.5 mm | 5.7±0.2 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 185.1g | - | Antiglare | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel | |||
3. TIANMA TM084SDHG01 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 70/70/60/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7189K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.300; Y:0.331 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 75% | 57% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 56% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33/1.43 (Typ./Max.)(9 points) | ||
4. TIANMA TM084SDHG01 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | 3S7P | Array | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | 3808K-F04N-02R | 1 pcs | 4 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 165/240mA (Typ./Max.) | 1.98W (Typ.) | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
