TD025THEEA -10 ~ 60°C 2.5 Inch 640*240 LTPS TFT LCD Panel

TD025THEEA -10 ~ 60°C 2.5 Inch 640*240 LTPS TFT LCD Panel
TD025THEEA -10 ~ 60°C 2.5 Inch 640*240 LTPS TFT LCD Panel TD025THEEA -10 ~ 60°C 2.5 Inch 640*240 LTPS TFT LCD Panel

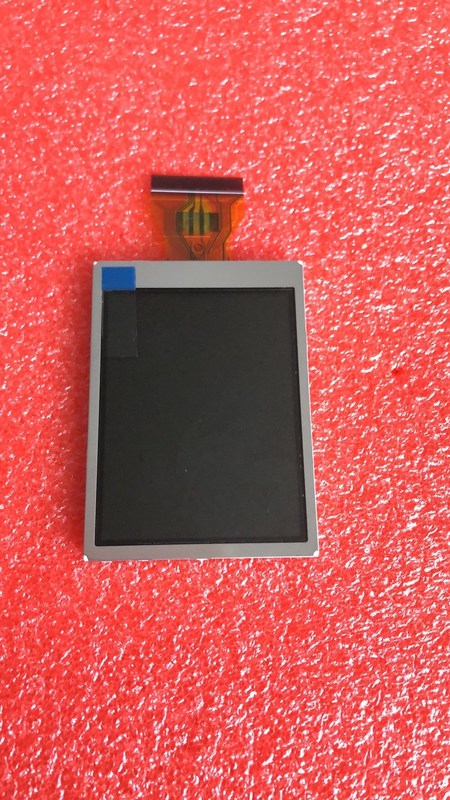

Large Image :  TD025THEEA -10 ~ 60°C 2.5 Inch 640*240 LTPS TFT LCD Panel

Product Details:
Place of Origin: TAIWAN
Brand Name: TPO
Certification: ISO9001
Model Number: TD025THEEA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD4.9/PCS
Packaging Details: Package Carton:200 pcs / box
Delivery Time: 1 DAY
Supply Ability: 1000PCS

TD025THEEA -10 ~ 60°C 2.5 Inch 640*240 LTPS TFT LCD Panel

Size: 2.5 Inch Resolution: 640×240
Brightness: 250 Cd/m² (Typ.) Viewing Angle: 40/40/20/50 (Typ.)(CR≥10)
Best View On: 6 O'clock Display Colors: 16.7M
Lamp Type: 2S1P WLED , Without Driver Touch Screen: Without
Signal Interface: Serial RGB (8-bit) + SPI, CCIR601 , 40 Pins FPC Environment: Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 80 °C
High Light:



640*240 LTPS TFT LCD



1.Main Information:

   TPO Displays Corp. TD025THEEA (Alias: 990000377) is a 2.5 Inch diagonal LTPS TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.

   It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -30 ~ 80°C .

   It's general features are following: WLED Backlight , Right side FPC.

   Based on its features,this model be applied to Digital Still Camera, Digital Video Camera etc.


2.TPO TD025THEEA Optical Features:

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
250 (Typ.) 40/40/20/50 (Typ.)(CR≥10) 13/22 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 300 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6638K 16.7M (8-bit) X:0.310; Y:0.330


3.TPO TD025THEEA Mechanical Features:

Panel Size  2.5 Inch
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
640×240 [HVGA] RGB Delta - [129PPI] 0.0785×0.1575
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
50.28(H) × 37.8(V) 52.8(H) × 40.3(V) 61.7(H) × 44.5(V) 2.68/2.98 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V) -
Other Detail : Weight Panel Cover Treatment
14.5g (Max.) - Hard coating (3H)


4.TPO TD025THEEA Interface Features:

Panel Driving Electrical  Voltage Supply Current Supply Power
3.0V (Typ.) - 40/50mW (Typ./Max.)
Interface Features : Position Signal Type
- Serial RGB (8-bit) + SPI, CCIR601 FPC
FPC Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
    0.5 mm 40 pins 1 pcs


5.TPO TD025THEEA Backlight Features:

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type 2S1P 1 string - -
WLED Electrical : Voltage Supply Current Supply Power
6.4/7.2V (Typ./Max.) 23/25mA (Typ./Max.) 166/200mW (Typ./Max.)
Interface Features : Position Backlight Driver Type
- No Included in panel signal interface
