Product Details:
|
| Panel Size: | 8.4" | Resolution: | 640(RGB)×480, VGA, 95PPI |
|---|---|---|---|
| Display Area: | 170.88(W)×128.16(H) Mm | Outline Size: | 200(W)×152(H) ×8.7(D) Mm |
| Display Colors: | 262K/16.7M 40% NTSC | Environment: | -30 ~ 80 °C |
| Panel Type: | A-Si TFT-LCD, LCM | Pixel Format: | RGB Vertical Stripe |
| Surface: | Clear, Hard Coating (3H) | Lamp Type: | 3 Strings WLED , 70K Hours , Without Driver |
| Highlight: | TFT 8.4 Inch LCD,NEC 8.4 Inch LCD,NL6448BC26-27 |
||
NL6448AC26-47D 8.4 INCH NEC TFT-LCD 640(RGB)×480 [VGA] 95PPI PIXEL -20 ~ 70 °C industrial LCD panel
1. Main Information:

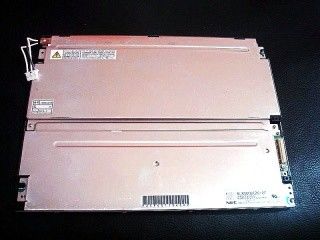

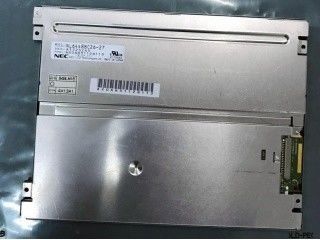

The NL6448BC26-27 is a 8.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, 180° Reverse, 6/8 bit , ColorXcell. Based on its features, Panelook recommend that this model be applied to Industrial etc
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 3/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 57% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.089×0.267 mm | Pixel Pitch(W×H) | 0.267×0.267 mm [95PPI] | |
| Physical Size : | Active Viewing | 170.88(W)×128.16(H) mm | Overall Dim. | 200(W)×152(H) mm |
| Bezel Opening | 174.0(W)×131.4(H) mm | Overall Depth | 8.2±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Face mounting holes (4-Φ2.8) on left, right bezel | |||
| Other Detail : | Mass | 260/280g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (84LHS16) | Amount | 3 strings | Life | 70K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 50/55mA (Typ./Max.) | Input Voltage | 13.3/15.0/17.0V (Min./Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM08B-SRSS-TB | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-ACACACNN | |
| Backlight Driver : | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable
performance.
3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
