Product Details:
|
| Screen Size: | 4.3 Inch | Pixel Number: | 480(RGB)×272 (WQVGA) 128PPI |
|---|---|---|---|
| Active Area(mm): | 95.04 × 53.856 (H×V) | Color Depth: | 16.7M 60% NTSC |
| Signal Type: | CMOS (1 Ch, 8-bit) , 51 Pins FPC | Max. Ratings: | -30 ~ 80 °C |
| Screen Type: | LCM , A-Si TFT-LCD | Arrangement: | RGB Vertical Stripe |
| Outline(mm): | 105.5 × 67.2 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H) |
| Highlight: | 4.3 INCH NEC TFT Display,NL4827HC19-05B,128PPI NEC TFT Display |
||

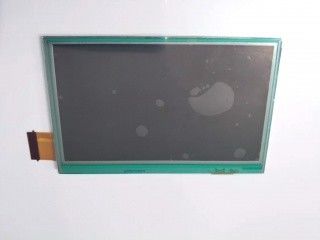

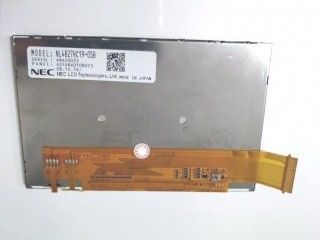

NL4827HC19-05B 4.3 INCH NEC TFT-LCD 480(RGB)×272, WQVGA, 128PPI PIXEL -20 ~ 70 °C industrial LCD panel
1. Main Information:
The NL4827HC19-05B is a 4.3 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: With Touch, WLED Backlight, Matte , Embedded DC-DC circuitry, 3 in 1 FPC. Based on its features, Panelook recommend that this model be applied to Handheld & PDA, Portable Navigation et
| Pixel Features : | Number of Pixel | 480(RGB)×272 [WQVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.066×0.198 mm | Pixel Pitch(W×H) | 0.198×0.198 mm [128PPI] | |
| Physical Size : | Active Viewing | 95.04(W)×53.856(H) mm | Overall Dim. | 105.5(W)×67.2(H) mm |
| Bezel Opening | - | Overall Depth | 4.8 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | - | |
| Touchscreen : | TP Controller | - | TP Interface | - |
| Touch Points | - | TP Technology | 4-wire Resistive Touch | |
| Other Detail : | Mass | 72.0/74.0g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 1.0/15.0mA (VCC/VDD) | Input Voltage | 3.0/5.0V (Typ.)(VCC/VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | 87mW (Typ.) | Signal Interface | CMOS (1 ch, 8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.3 mm | 51 pins | ||||
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | - |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 strings | Life | - | |
| Lamp Electrical : | Input Current | 20/22mA (Typ./Max.) | Input Voltage | 12.8/14.0V (Typ./Max.) | ||
| Consumption | 512mW (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
