Product Details:
|
| Size: | 6.4 Inch | Resolution: | 640*480 |
|---|---|---|---|
| Luminance: | 250 Cd/m² (Typ.) | View Direction: | 6 O'clock |
| Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10) | Support Color: | 262K 45% NTSC |
| Interface Type: | CMOS/TTL (1 Ch, 6-bit) , 30 Pins Connector | Operating Mode: | TN, Normally White, Transmissive |
| Light Source: | CCFL [1 Pcs] , 20K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LB064V02-TD01,6.4 Inch A-Si TFT LCD,45% NTSC A-Si TFT LCD |
||
6.4 Inch a-Si TFT-LCD LB064V02-TD01 45% NTSC Designed For Industrial
1. Main Information:

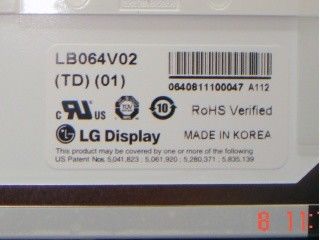

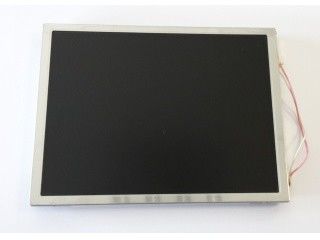

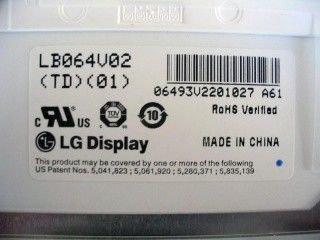

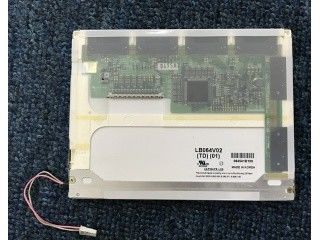

LB064V02-TD01 (Alias: LB064V02 (TD)(01)) is a 6.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .
It's general features are following: Matte , EOL: Dec. 2012. Based on its features, this model be applied to Industrial etc.
2. LCD LB064V02-TD01 Mechanical Details:
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 130.56×97.92 mm (H×V) | Bezel Area | 133.8×101.1 mm (H×V) |
| Outline Dim. | 145.5×111.5 mm (H×V) | Outline Depth | 6.0±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M2) | |||
| Other Features : | Weight | 130/140g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
3. LCD LB064V02-TD01 Optical Details:
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 45% | sRGB | 62% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 46% coverage | |
| Rec.2020 | 33% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. LCD LB064V02-TD01 Backlight Details:
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 340V (Typ.) | Current Input | 6.0mA (Typ.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | - | |||
| Consumption | 2.04W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
