Product Details:
|
| Screen Size: | 5.7 Inch | Pixel Number: | 320(RGB)×240 (QVGA) 70PPI |
|---|---|---|---|
| Active Area(mm): | 115.2 × 86.4 (H×V) | Screen Type: | LCM , CSTN-LCD |
| Arrangement: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) |
| Highlight: | SX14Q006,320×240 Hitachi TFT Displays,5.7 INCH Hitachi TFT Displays |
||
1. Main Information:

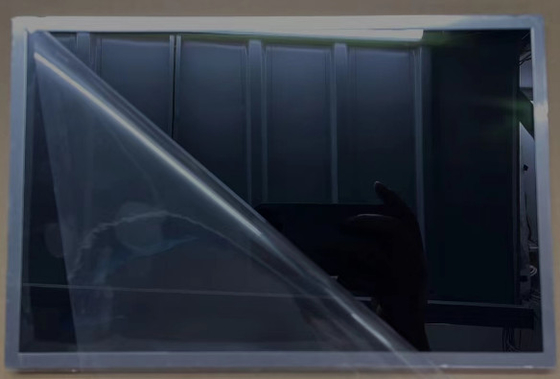

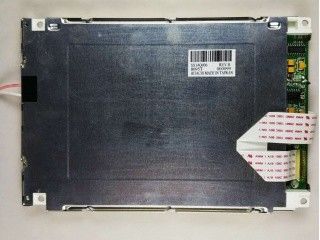

The SX14Q006 is a 5.7 inch diagonal CSTN-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral CCFL backlight system, without backlight driver, without touch screen. Based on its features, Panelook recommend that this model be applied to Industrial etc. Now this model is discontinued. There are 6 items stock and 4 suppliers of this model on Panelook. We inputted this model's specification on Jan 5 2013 for the first time, and the latest update on Feb 28 2017. If you want to embed SX14Q006 LCM in your future product, Panelook strongly recommend that you should contact with HITACHI or it's agent to learn lateast production and specification detail. The SX14Q006 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | STN, Normally Black | - | |
| Good View at | Viewing Angle | Response Time | |
| - | - | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | Color | - |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | - | - | - | - | |
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
