Product Details:
|
| Size: | 4.7 Inch | Resolution: | 320*240 |
|---|---|---|---|
| Luminance: | 25 Cd/m² (Typ.) | View Direction: | 6 O'clock |
| Viewing Angle: | 40 (Typ.)(CR≥2, Φ2-Φ1) | Support Color: | Monochrome |
| Interface Type: | Parallel Data (4-bit) , 15 Pins Connector | Operating Mode: | STN, Black/White (Negative), Transflective |
| Light Source: | CCFL [1 Pcs] , W/O Driver | Environment: | Operating Temperature: -10 ~ 45 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 4.7 Inch HITACHI TFT LCD,LMG7525RPFF,15 pins HITACHI TFT LCD |
||

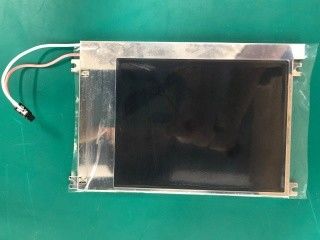

4.7 Inch Monochrome Transflective TFT LCD LMG7525RPFF 15 pins Connector For Industrial
1. Main Information:
LMG7525RPFF is a 4.7" diagonal FSTN-LCD display panel product from Kaohsiung Opto-Electronics Inc.with an integral CCFL backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -10 ~ 45°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.2G (11.76 m/s²).
It's general features are following: Transflective, Matte . Based on its features,this model be applied to Industrial etc.
2. LMG7525RPFF Optical Details:
| Basic Information : | Luminance | 25 cd/m² (Typ.) | Contrast Ratio | 5 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 250/350 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) | Operating Mode | STN, Black/White (Negative), Transflective | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
3. LMG7525RPFF Mechanical Details:
| Pixel Features | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.300×0.300 mm | Pixel Pitch(W×H) | 0.300×0.300 mm [84PPI] | |
| Physical Size : | Active Viewing | 95.97(W)×71.97(H) mm | Overall Dim. | 129.6(W)×92.6(H) mm |
| Bezel Opening | 104.0(W)×79.5(H) mm | Overall Depth | 7.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Face mounting holes (4-R1.5) | |||
| Other Detail : | Mass | 110g (Typ.) | Surface | Antiglare |
4. LMG7525RPFF Lightting Details:
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | - | |
| Lamp Electrical : | Input Current | 5±1mA | Input Voltage | 60V (Typ.) | ||
| Frequency | 30KHz (Min.) | Turn-on Voltage | 1000V (Min.)(Ta=+25℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | IL-G-4S-S3C2-SA | 1 pcs | 2.5 mm | 4 pins | BLL-4PINS-LNNH | |
| Backlight Driver : | No | |||||
5.FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
