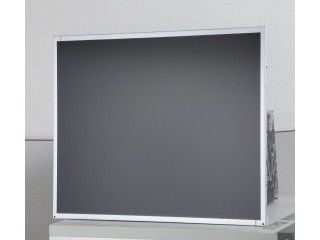

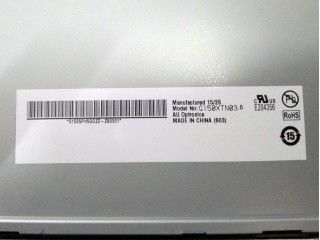

G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10)

G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10)
G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10) G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10) G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10) G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10)

Large Image :  G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10)

Product Details:
Place of Origin: TAIWAN
Brand Name: AUO
Certification: ISO9001
Model Number: G150XTN03.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 60USD
Packaging Details: Package Box : 15 pcs / box 20 Kgs Box Size:375×430×360 mm (L×W×H)
Delivery Time: 1 DAY
Payment Terms: T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability: 1000PCS

G150XTN03.0 15 Inch 1024*768 20 Pins TFT LCD Panel 85/85/80/80 (Typ.)(CR≥10)

Description
Size: 15 Inch Resolution: 1027*768
Luminance: 350 Cd/m² (Typ.) Viewing Angle: 85/85/80/80 (Typ.)(CR≥10)
Support Color: 262K/16.2M 60% NTSC Interface Type: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Operating Mode: TN, Normally White, Transmissive Touch Panel: Without
Light Source: WLED , 30K Hours , With LED Driver Environment: Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C
High Light:

G150XTN03.0

,

20 pins AUO TFT LCD

,

1024*768 TFT LCD Panel

15 Inch 1024*768 TFT LCD Panel G150XTN03.0 With 20 pins Connector And LED Driver



1. Main Information:

   The G150XTN03.0 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp.with an integral WLED backlight system, With LED Driver , without touch screen.

   It features an operating temperature range of 0 ~ 65°C , a storage temperature range of -20 ~ 65°C , and the maximal vibration level of 1.5G (14.7 m/s²).

   It's general features are following: WLED Backlight, With LED Driver, 6/8 bit, Matte . Based on its features, this model be applied to Industrial etc.



2. AUO G150XTN03.0 Mechanical Features:

Panel Size  15 Inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1024(RGB)×768, XGA RGB Vertical Stripe 0.099×0.297 mm 0.297×0.297 mm [85PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
304.128×228.096 mm 313.55×237.25 mm 326.5×253.5 mm 12.0 (Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type -
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Features : Panel Cover Weight Surface
- 1.20Kgs (Max.) Antiglare, Hard coating (3H)



3.AUO G150XTN03.0 Optical Features:

Basic Information : Brightness Operating Mode Contrast Ratio
350 cd/m² (Typ.) TN, Normally White, Transmissive 700:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
85/85/80/80 (Typ.)(CR≥10) - 5.7/2.3 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 262K/16.2M (6-bit / 6-bit + FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
60% 84% 63%
DCI-P3 Coverage Rec.2020 Coverage Remarks
63% 45% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.25/1.33 (Typ./Max.)(9 points)



4.AUO G150XTN03.0 Backlight Features:

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type (Bottom side) - - 30K(Min.) No
Interface Features : Position Type WLED Driver
- Connector With LED Driver
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
E&T 3808K-F05N-02R 1 pcs 1.25 mm 5 pins
Driver Electrical : Current Input Voltage Input Consumption
0.70A (Typ.) 12.0±1.2V 8.4/10W (Typ./Max.)
