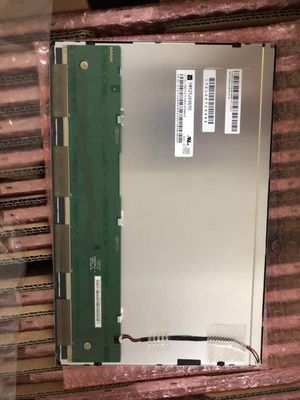

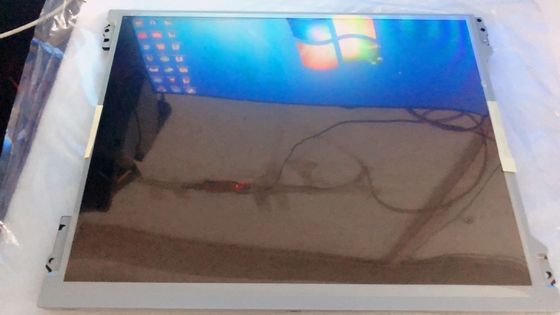

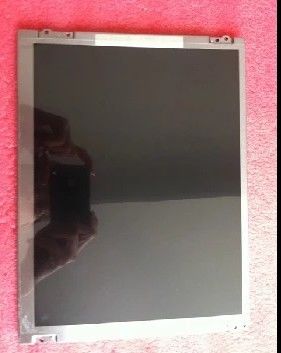

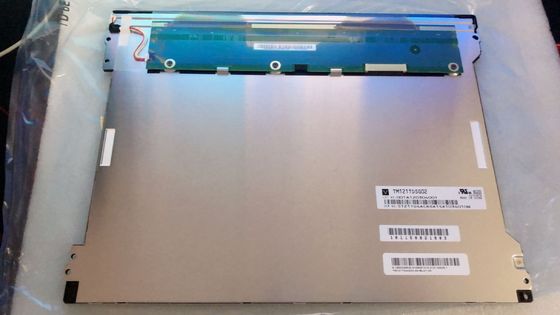

12.1" RGB 800×600 350nits Tianma LCD Panel TM121SDSG07 SVGA 82PPI

Large Image : 12.1" RGB 800×600 350nits Tianma LCD Panel TM121SDSG07 SVGA 82PPI

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM121SDSG07

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

12.1" RGB 800×600 350nits Tianma LCD Panel TM121SDSG07 SVGA 82PPI

Description

MODEL NUMBER:	TM121SDSG07	BRAND:	TIANMA
SIZE:	12.1INCH	RESOLUTION:	800(RGB)×600 [SVGA] 82PPI
BRIGHTNESS:	350CD/M2	Viewing Angle:	80/80/65/75 (Typ.)(CR≥10)
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:	350nits Tianma LCD Panel , RGB 800×600 Tianma LCD Panel , SVGA 82PPI Tianma Display

TIANMA TM121SDSG07 Application Details

Basic Info :	Panel Brand Panel Model TM121SDSG07 Diagonal Size 12.1" Application Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability :	Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C RoHS State Vibration Rating -
Specific Features :

TIANMA TM121SDSG07 Mechanical Details

Pixel Features :	Pixel Format 800(RGB)×600, SVGA Dot Pitch 0.1025×0.3075 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.3075×0.3075 mm (H×V) [82PPI]
Mechanical Size :	Display Area 246×184.5 mm (H×V) Bezel Area -
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style

TIANMA TM121SDSG07 Optical Details

Basic Information :	Brightness 350 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive) Viewing Angle 80/80/65/75 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction - Response Time 35 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity - Color Numbers 262K/16.7M (6-bit / 8-bit) Color Temperature - Uniformity 1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM121SDSG07 Electronics Details

Frame Frequency :	60Hz

TIANMA TM121SDSG07 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 30K(Min.) (Hours) Replacement - Lamp Shape - Position Edge light type
Interface Features :	Type Connector Position - Lamp Driver With LED Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration STM MSB24038P5 1.25 mm 5 pins 1 pcs
Driver Electrical :	Voltage Input 12.0V (Typ.) Current Input TBD

TIANMA TM121SDSG07 Interface Detail

Signal Systerm :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 270/325mA (Typ./Max.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration STM MSB240420HE 1.25 mm 20 pins 1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

12.1" RGB 800×600 350nits Tianma LCD Panel TM121SDSG07 SVGA 82PPI 0
