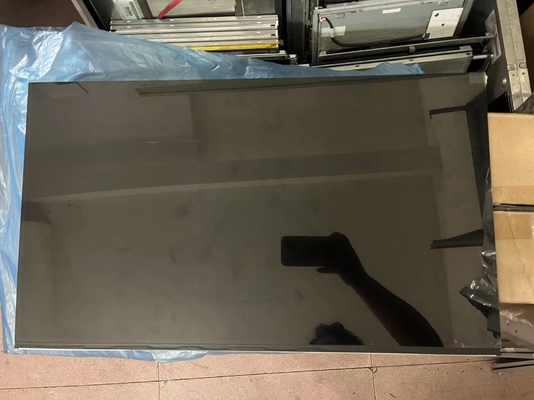

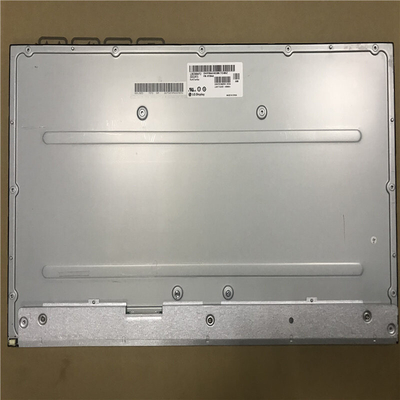

LM270WF7-SSD3 LG Display 27.0" 1920(RGB)×1080, 250 (cd/m²) INDUSTRIAL LCD DISPLAY

 whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.1(H)×13.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.12/3.27Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WF7-SSD3 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WF7-SSD3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
