Product Details:
|
Brand: | BOE | Diagonal Size: | 21.5" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 102PPI | Luminance: | 500 Cd/m² |
Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

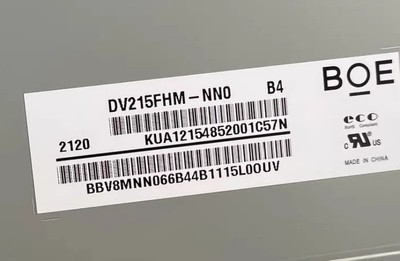

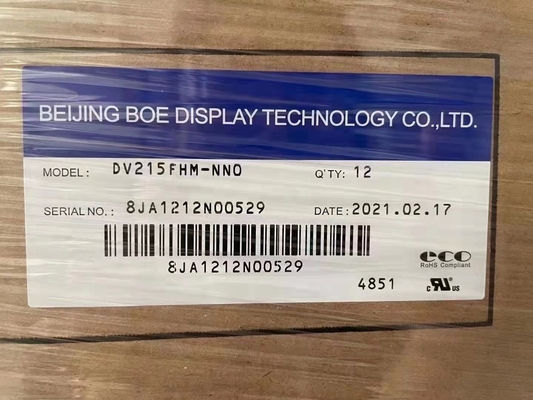

Basic Information : | Brand | Model | DV215FHM-NN0 | |
---|---|---|---|---|
Type | LCM a-Si TFT-LCD | Used For | ||
Screen Size | 21.5" | Alias | - | |
Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.08265×0.24795 (H×V) |
---|---|---|---|---|
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24795×0.24795 (H×V) [102PPI] | |
Mechanical Size : | Active Area(mm) | 476.064(H) × 267.786(V) | Bezel Area(mm) | 479.8(H) × 271.2(V) |
Outline Dim.(mm) | 495.6(H) × 292.2(V) | Depth(mm) | 8.2/11.2 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
Other Spec : | Weight | 1.97Kgs (Typ.) | Treatment | Antiglare, Hard coating (3H) |
Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
---|---|---|---|---|
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | ADS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 92% coverage |
Adobe RGB | 71% coverage | DCI-P3 | 76% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.5/1.2A (Typ./Max.) | ||
---|---|---|---|---|---|---|
Consumption | 2.5/6.0W (Typ./Max.) | |||||
Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
Interface Features : | Position | Type | Connector | |||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
UJU | IS100-L30R-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160M |
Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type (Bottom side) |
---|---|---|---|---|---|---|
Replacement | - | Quantity | 24S3P | Life Time | 30K(Min.) (Hours) | |
Lamp Electrical : | Voltage Supply | 72/76.8V (Typ./Max.) | Current Supply | 85mA (Typ.) | ||
Consumption | 18.4/19.6W (Typ./Max.) | |||||
Interface Features : | Position | Type | Connector | |||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
E&T | 3707K-Q06N-08X | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 495.6(W)×292.2(H)×11.2(D) mm, viewing area size of 479.8(W)×271.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.97Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, DV215FHM-NN0 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted 24S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. DV215FHM-NN0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
