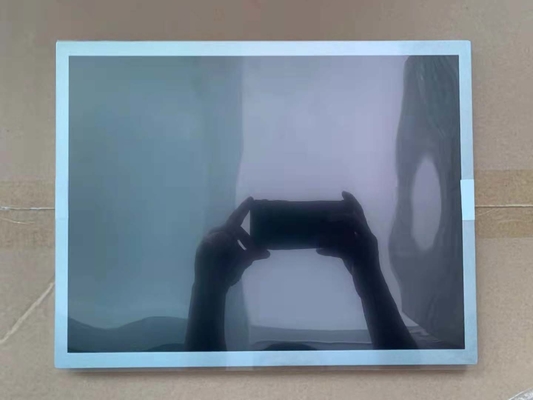

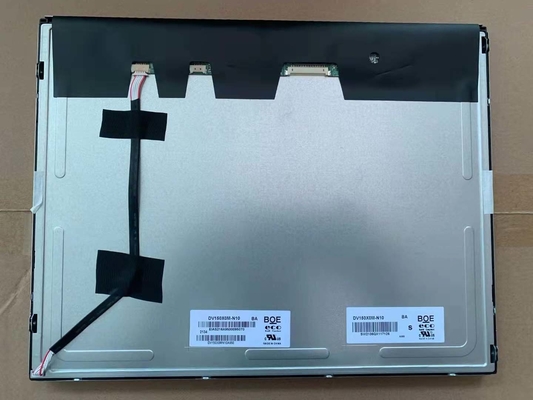

Product Details:
|
| Brand: | BOE | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Luminance: | 600 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Outline Dim.: | 326.5(H)×253.5(V)×10.4(D) Mm |
| Basic Info : | Panel Brand | Panel Model | DV150X0M-N16 | |
|---|---|---|---|---|
| Diagonal Size | 15.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] | |
| Mechanical Size : | Display Area | 304.128×228.096 mm (H×V) | Bezel Area | 306.13×230.1 mm (H×V) |
| Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 9.7/10.4 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 730g | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 600 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.287; Wy:0.310 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 8503K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 12S4P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 27.9±1.8V | Current Input | 65mA (Typ.) | ||
| Consumption | 10.88/11.58W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| CviLux | CI4205M1HR0-NH | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | |||
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 410/740mA (Typ./Max.) | ||
| Consumption | 0.8/1.3W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSB240420HEA | 1.25 mm | 20 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.4(D) mm, viewing area size of 306.13(W)×230.1(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 730g. As a ADS, Normally Black, Transmissive LCM product, DV150X0M-N16 can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. DV150X0M-N16 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
