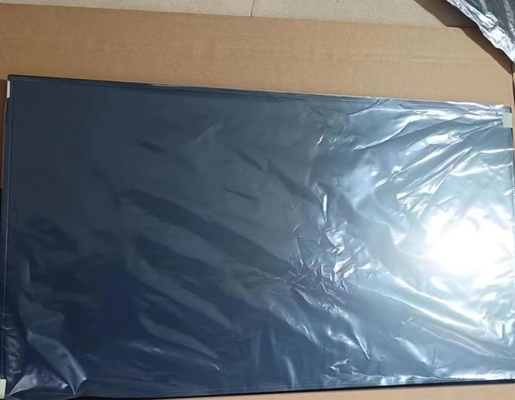

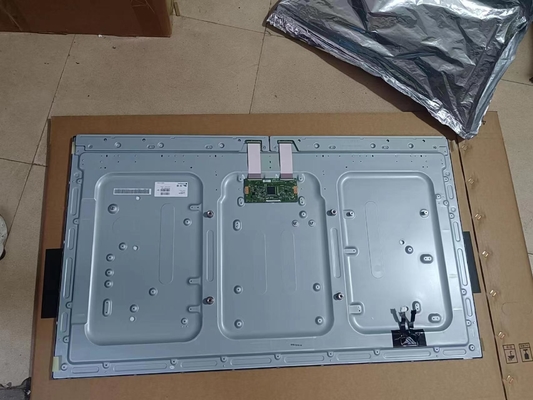

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 43" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 103PPI | Brightness: | 700 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Min.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Basic Detail : | Manufacturer | Model Name | LD430EQE-FPA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LD430EQE (FP)(A1) | |
| Panel Size | 43 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.292 | Support Color | 1.07B (8-bit + Dithering) |
| Color Temperature | 9972K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 80% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 81% coverage | |
| Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0817×0.2451 mm | Pixel Pitch(W×H) | 0.2451×0.2451 mm [103PPI] | |
| Physical Size : | Active Viewing | 941.184(W)×529.416(H) mm | Overall Dim. | 962(W)×554.8(H) mm |
| Bezel Opening | 946.2(W)×534.4(H) mm | Overall Depth | 18.3/34.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 8.50/9.35Kgs (Typ./Max.) | Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Signal Electrical : | Input Current | 560/730mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.72/8.74W (Typ./Max.) | Signal Interface | V-by-One 8 lane | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | 6 strings × 2CN | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6 strings × 2CN | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 75mA (Typ./Max.) | Input Voltage | 73/79.7/83.8V (Min./Typ./Max.) | ||
| Consumption | 65.7/71.7/75.4W (Min./Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | HS100-L08N-N62 | 1 pcs | 1.0 mm | 8 pins | BLE-8PINA-CCCCCCNA | |
| UJU | HS100-L08N-N62-A | 1 pcs | 1.0 mm | 8 pins | BLE-8PINA-ANCCCCCC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm, outline size of 962(W)×554.8(H)×34.6(D) mm, viewing area size of 946.2(W)×534.4(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (2H), net weight of 8.50/9.35Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LD430EQE-FPA1 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product adopted 6 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LD430EQE-FPA1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
