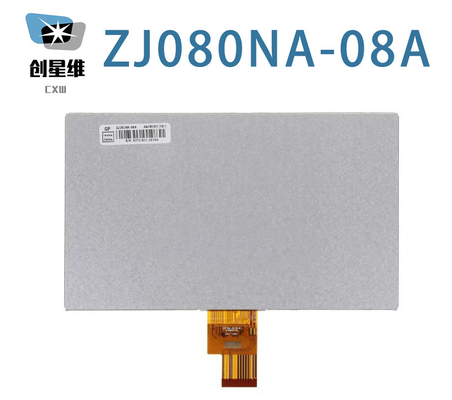

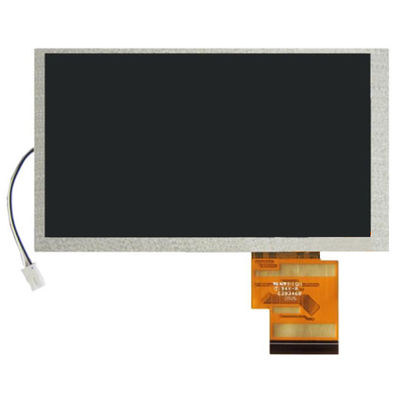

Product Details:
|
| Brand: | Chimei Innolux | Diagonal Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 148PPI | Active Area: | 176.64(W)×99.36(H) Mm |
| 176.64(W)×99.36(H) Mm: | 192.8(W)×116.9(H) ×6.7(D) Mm | Brightness: | 500 Cd/m² (Typ.) |
| Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) | Nvironment: | Operating Temp.: -20 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| ZJ080NA-08A | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 80 °C | -30 ~ 80 °C |
| Panel Size : | 8.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.0575×0.1656 mm | 0.1725×0.1656 mm [148PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 176.64×99.36 mm | 179.84×103.16 mm | 192.8×116.9 mm | 6.4±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 0.23Kgs (Typ.) | |||
| Panel Size : | 8.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.0575×0.1656 mm | 0.1725×0.1656 mm [148PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 176.64×99.36 mm | 179.84×103.16 mm | 192.8×116.9 mm | 6.4±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 0.23Kgs (Typ.) | |||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 38/21/0.3/0.29mA (Typ.)(IDD/AIDD/IGH/IGL) | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) | 0.39W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 20K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 360/420mA (Typ./Max.) | 9.9/10.5V (Typ./Max.) | 3.56W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in signal interface | No | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 179.84(W)×103.16(H) mm, net weight of 0.23Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, ZJ080NA-08A can provides 500 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. ZJ080NA-08A utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL).
